Sale!
ZimaBoard 2 1664 Single Board Server, Intel N150 4-Core, 16GB LPDDR5+64GB eMMC, PCIe 3.0×4, Dual 2.5GbE & Dual SATA3.0, 2X USB 3.1 Gen1 – DIY Expandable for Mini NAS/Media Server/Firewall/Soft Router
ZimaBoard 2 1664 Single Board Server, Intel N150 4-Core, 16GB LPDDR5+64GB eMMC, PCIe 3.0×4, Dual 2.5GbE & Dual SATA3.0, 2X USB 3.1 Gen1 – DIY Expandable for Mini NAS/Media Server/Firewall/Soft Router - Image 2
ZimaBoard 2 1664 Single Board Server, Intel N150 4-Core, 16GB LPDDR5+64GB eMMC, PCIe 3.0×4, Dual 2.5GbE & Dual SATA3.0, 2X USB 3.1 Gen1 – DIY Expandable for Mini NAS/Media Server/Firewall/Soft Router - Image 3
ZimaBoard 2 1664 Single Board Server, Intel N150 4-Core, 16GB LPDDR5+64GB eMMC, PCIe 3.0×4, Dual 2.5GbE & Dual SATA3.0, 2X USB 3.1 Gen1 – DIY Expandable for Mini NAS/Media Server/Firewall/Soft Router - Image 4
ZimaBoard 2 1664 Single Board Server, Intel N150 4-Core, 16GB LPDDR5+64GB eMMC, PCIe 3.0×4, Dual 2.5GbE & Dual SATA3.0, 2X USB 3.1 Gen1 – DIY Expandable for Mini NAS/Media Server/Firewall/Soft Router - Image 5
ZimaBoard 2 1664 Single Board Server, Intel N150 4-Core, 16GB LPDDR5+64GB eMMC, PCIe 3.0×4, Dual 2.5GbE & Dual SATA3.0, 2X USB 3.1 Gen1 – DIY Expandable for Mini NAS/Media Server/Firewall/Soft Router - Image 6

ZimaBoard 2 1664 Single Board Server, Intel N150 4-Core, 16GB LPDDR5+64GB eMMC, PCIe 3.0×4, Dual 2.5GbE & Dual SATA3.0, 2X USB 3.1 Gen1 – DIY Expandable for Mini NAS/Media Server/Firewall/Soft Router

Original price was: $460.00.Current price is: $415.00.

About this item

  • 【High-Performance x86 Server Board】 Powered by an N150 quad-core CPU up to 3.6GHz, with 16GB DDR5 RAM and 64GB onboard storage, ZimaBoard 2 provides stronger multitasking power than Pi-style SBCs and far more flexibility than mini PCs—ideal for DIY NAS, router builds, Docker stacks, home labs, AI edge workloads, and creative studio setups.
  • 【Enhanced Performance + Real Expandability】 The upgraded CPU delivers over 3× faster performance, making large-folder browsing, photo previews, and 4K media streaming noticeably smoother. With PCIe 3.0×4 and dual SATA ports, you get true server-grade flexibility: add NVMe SSDs, HDD/SSD arrays, multi-port NICs, cache drives, or even GPU cards for local AI models. Build and scale your own NAS, Docker lab, home cloud, or homelab server without replacing the hardware.
  • 【Dual 2.5GbE for Stable & Flexible Networking】 Dual 2.5GbE ports provide two independent high-speed channels, perfect for creating WAN/LAN setups, multi-WAN routing, VLAN segmentation, or advanced firewall and soft-router configurations. Even under heavy downloads, backups, and media streaming, your network stays fast and stable—ideal for 24/7 home-server and studio environments.
  • 【ZimaOS Preinstalled + Wide OS Compatibility】 Comes preinstalled with ZimaOS for a clean, ad-free private cloud experience—centralized file dashboard, automatic backups, P2P downloads, private photo/video sharing, 500+ plug-ins, and secure on-device AI that keeps your data at home. Also supports TrueNAS, Proxmox, Debian, Ubuntu Server, pfSense, OpenWrt, and Linux containers, making it perfect for Plex media servers, Pi-hole, firewalls, backups, Docker labs, home-cloud services, and multi-service deployments.
  • 【Outperforms Pi & Outclasses Mini PCs】 One device replaces multiple boxes: NAS, router, Docker node, media server, firewall, AI edge machine, and home-cloud server. It also supports smart home workloads such as Home Assistant, Frigate, and local automation services through Docker or Linux containers—making ZimaBoard 2 an all-in-one x86 home server for homelabs, creators, engineers, and self-hosting users.
  • 【2-Year Warranty & Reliable Support】 Comes with a 2-year warranty, 24/7 technical support, and hassle-free returns. Whether it’s packaging damage, product issues, or wrong shipments, our team will make it right—your experience is always protected.
Categories: , Brand:

Description

Product Details
Screen Resolution ‎1920 x 1080
Processor ‎3.6 GHz intel_n150
RAM ‎LPDDR5
Hard Drive ‎1 TB HDD
Card Description ‎Integrated
Series ‎ZimaBoard 2 1664
Item model number ‎N150
Operating System ‎ZimaOS
Item Weight ‎1.5 pounds
Product Dimensions ‎1.2 x 3.2 x 5.5 inches
Item Dimensions LxWxH ‎1.2 x 3.2 x 5.5 inches
Color ‎ZimaBoard 2 1664
Processor Brand ‎Intel
Number of Processors ‎4
Computer Memory Type ‎DDR5 RAM
Hard Drive Interface ‎eSATA
Hard Drive Rotational Speed ‎7200 RPM
ZimaBoard 2
ZimaBoard 2

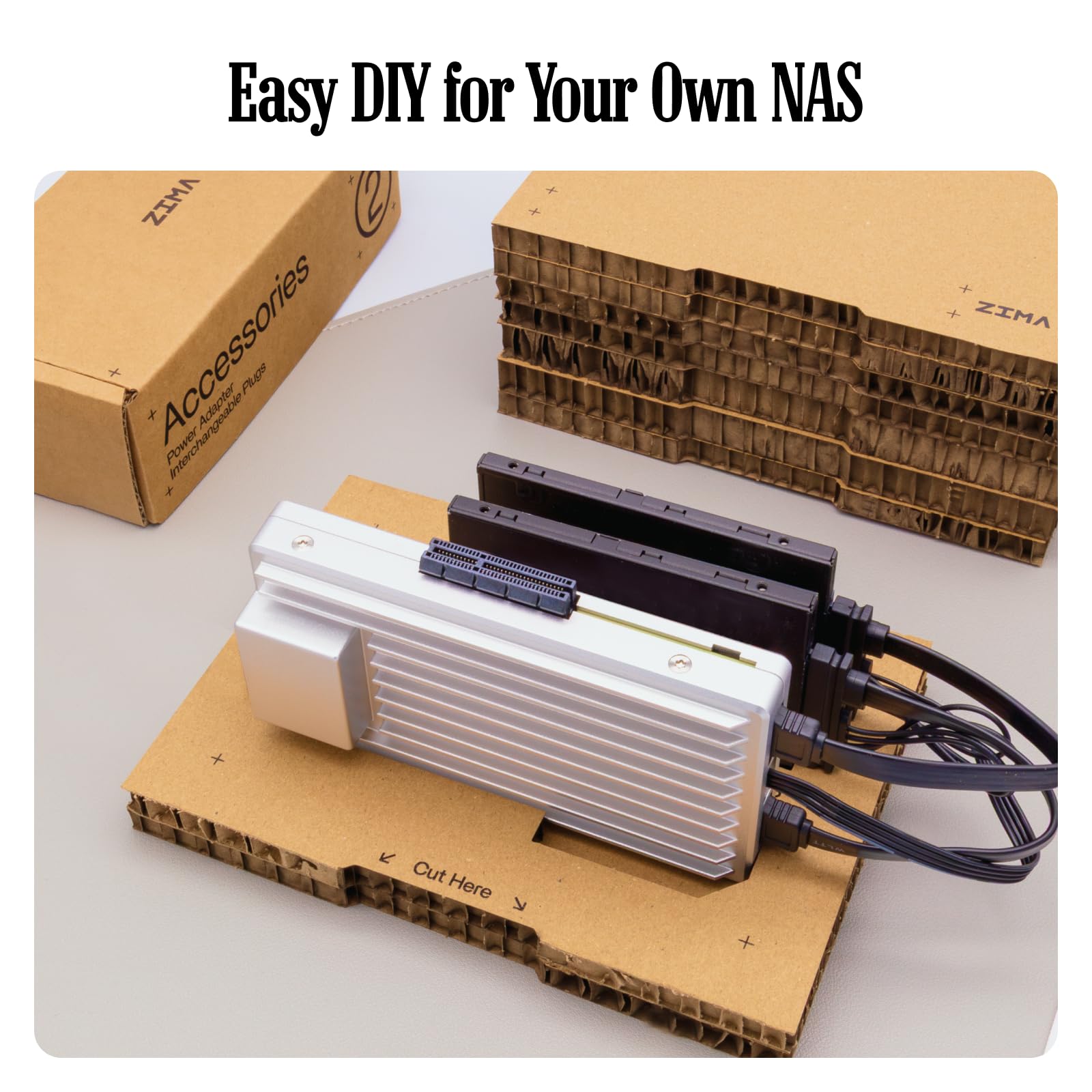

Build Your Mini-NAS

ZimaBoard 2

Sustainable & Ready to Build

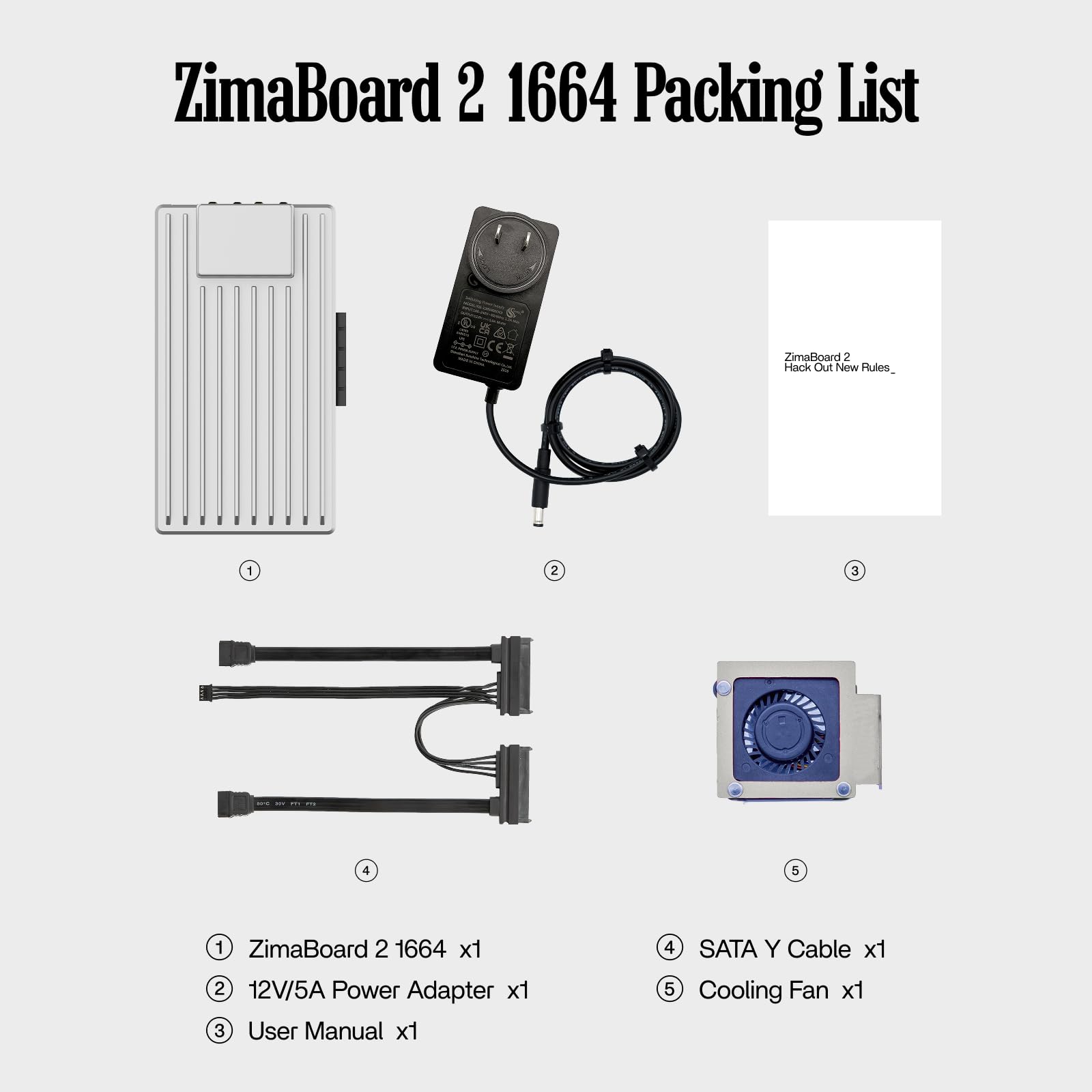

Start with the eco-base. Our clever packaging holds everything secure

ZimaBoard 2

Easy Assembly in Minutes

Then, just connect. A quick setup gets your mini-NAS running fast

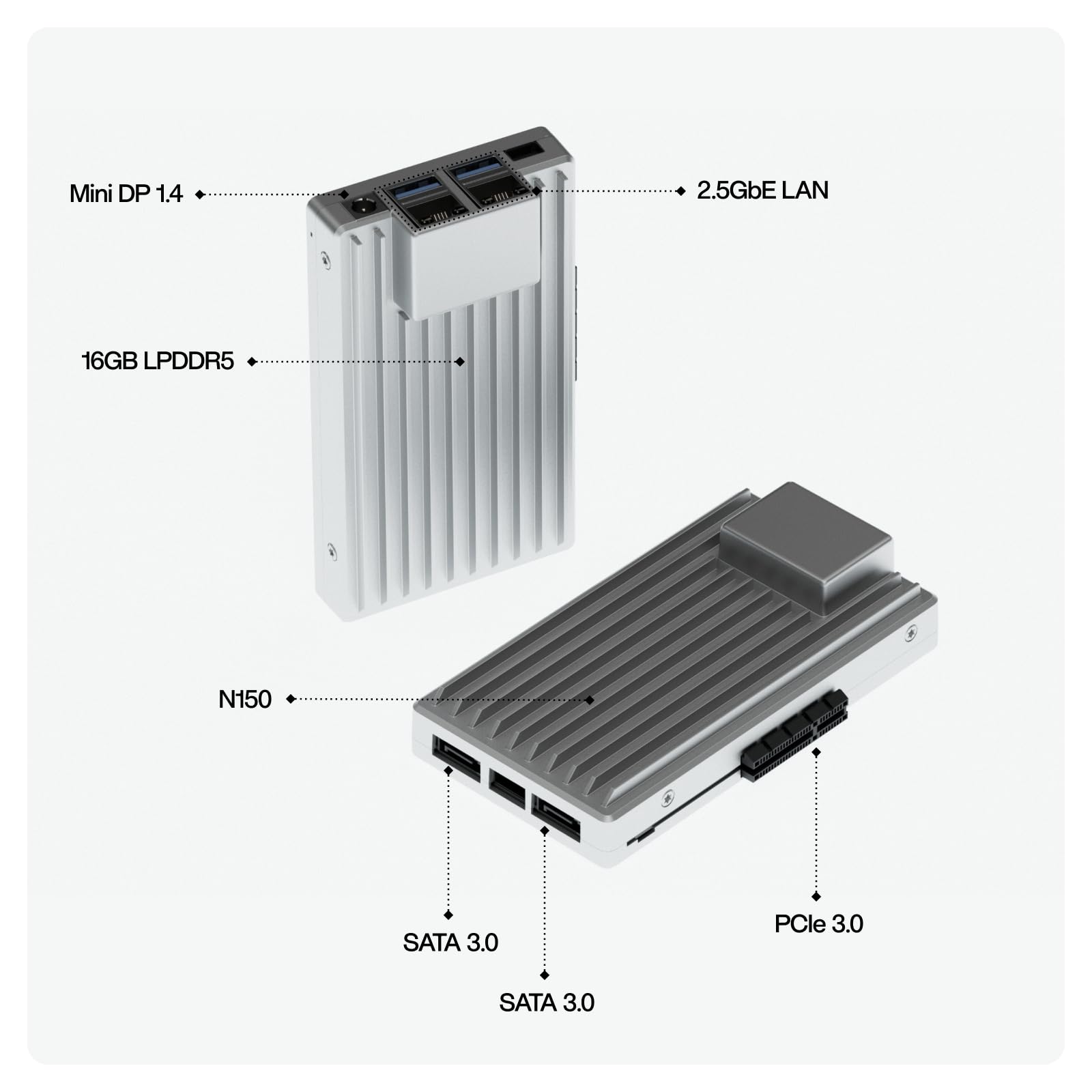

Key Specification for ZimaBoard 2

Model ZimaBoard 2 832 / 1664
Processor N150 ; 4 Cores ; 6M Cache ; up to 3.60GHz
Memory 8GB / 16GB LPDDR5 x 4800MHz
eMMC 32GB / 64GB
Network 2 x 2.5GbE LAN Ports
HDD/SSD 2 x SATA 3.0 6Gb/s Ports with Power
USB 2 x USB 3.1
PCle 1 x PCle 3.0 x 4
Display 1 x Mini-DisplayPort 1.4 4k@60Hz
On-Board interfaces 1 x CPU fan 4-pin connector, 1 x LPC, 1 x Frontn panel
Graphics Frequency Up to 1G MHz
Virtualization Supports Intel AES New Instructions ; Intel Virtualization Technology (VT-x) ; Intel Virtualization Technology for Directed I/O (VT-d)
Cooling Fanless
CPU TDP 10W
Power 12v 5A Power Supply ( Accommodate the power requirements of two high-capacity HDDs )
Size 140mm x 83mm x 31mm
