Sale!
HDMI Matrix Switch 4x2, 4K HDMI Matrix Switcher Splitter 4 in 2 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, 1080P
HDMI Matrix Switch 4x2, 4K HDMI Matrix Switcher Splitter 4 in 2 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, 1080P - Image 2
HDMI Matrix Switch 4x2, 4K HDMI Matrix Switcher Splitter 4 in 2 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, 1080P - Image 3
HDMI Matrix Switch 4x2, 4K HDMI Matrix Switcher Splitter 4 in 2 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, 1080P - Image 4
HDMI Matrix Switch 4x2, 4K HDMI Matrix Switcher Splitter 4 in 2 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, 1080P - Image 5
HDMI Matrix Switch 4x2, 4K HDMI Matrix Switcher Splitter 4 in 2 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, 1080P - Image 6
HDMI Matrix Switch 4x2, 4K HDMI Matrix Switcher Splitter 4 in 2 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, 1080P - Image 7

HDMI Matrix Switch 4×2, 4K HDMI Matrix Switcher Splitter 4 in 2 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, 1080P

Original price was: $50.00.Current price is: $45.00.

About this item

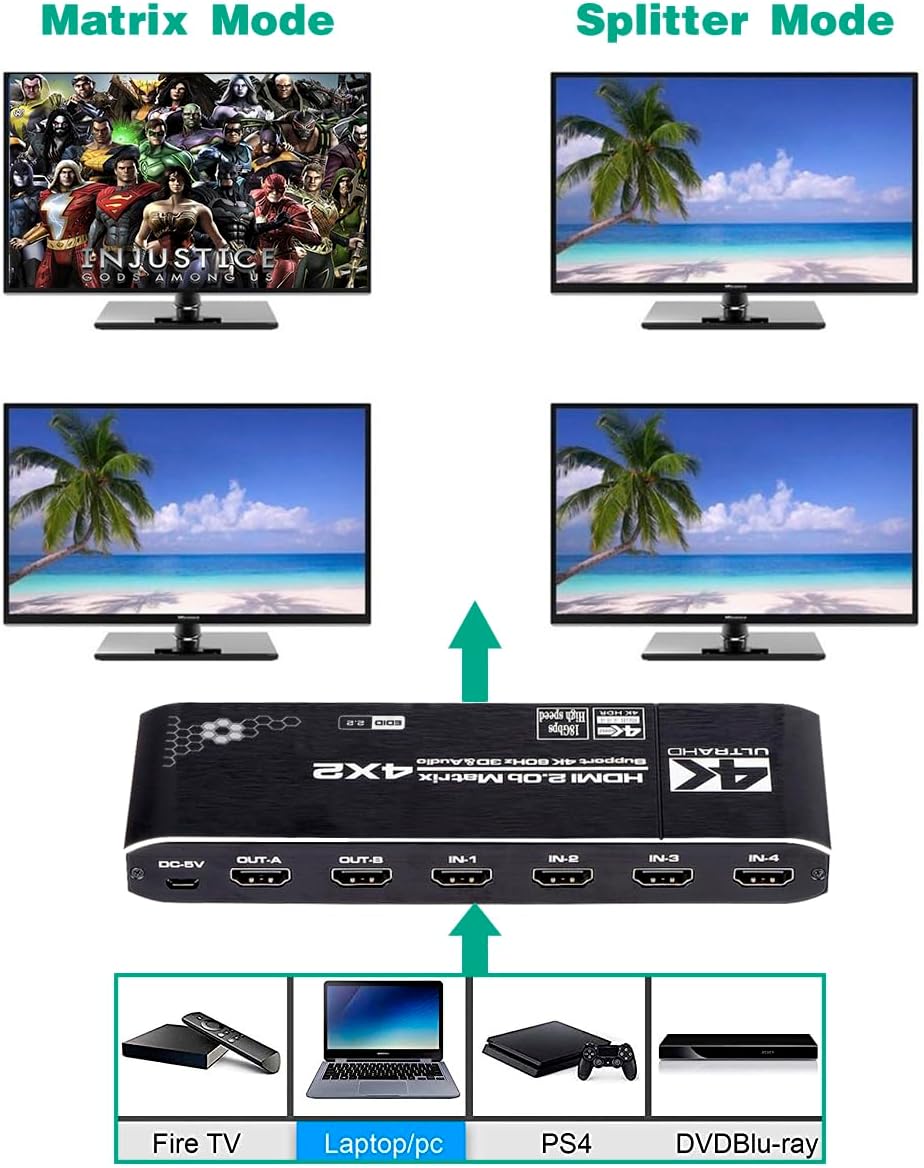

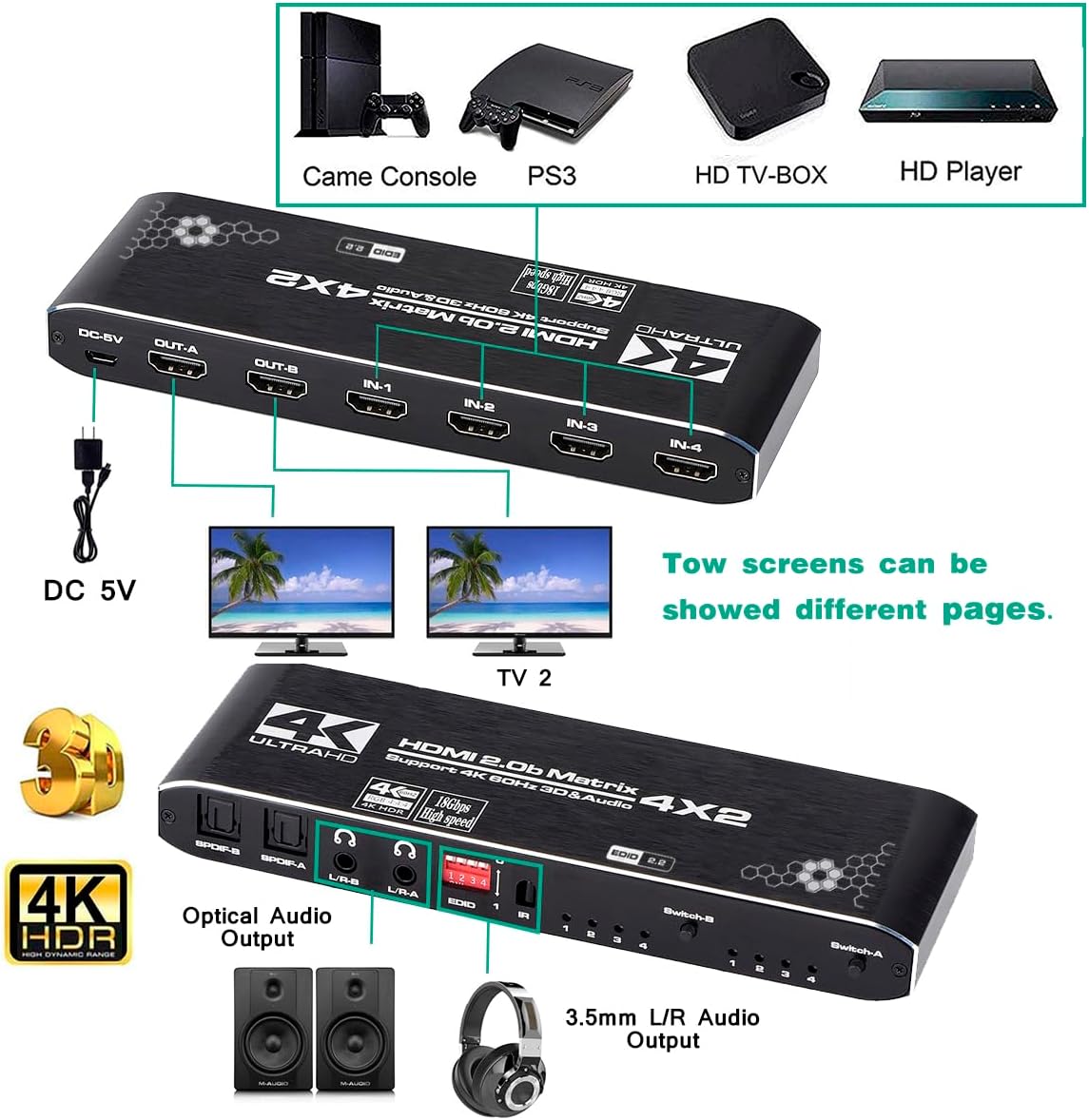

  • HDMI Matrix 4×2: It can connect four 4K HDMI signal sources to two HD display or monitor, and it can also extract the HDMI input Audio signal with Toslink SPDIF optical fiber or 3.5mm stereo headphone output. It supports HDCP 2.2, HDMI2.0b, 4K@60HZ, RGB4:4:4, 4K HDR. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right. After you had set the EDID, Please restart your HDMI Matrix Switch.
  • HDMI Video Format: 4K@60Hz, 4K HDR, 3840×2160@60Hz, Ultra HD, 3D, RGB 4:4:4. Support 18.5Gbps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24/32/48bit.
  • HDMI Audio Extract and Settable EDID: HDMI Matrix 4×2 with two 3.5mm L/R port and two optical toslink audio output, support LPCM/Dolby/DTS 5.1 channel and smart EDID management.
  • Compatibility: Support HDCP 2.2, compatible with HDMI 2.0b. Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc. Output support: Projector, HDTV etc.
  • Enbuer ensures long-time satisfaction of your purchase: Friendly and easy-to-reach customer service to solve your problems timely. If you have any problems, Please contact us we will slove immediately.
Category:

Description

Product Details

Color: Black

4×2 HDMI Matrix Switch Splitter With Audio Extraction

Features

– Support HDMI 2.0b HDCP 2.2

– HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4

– Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz

– Support deep color 8/10/12/24/32/48bit

– Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time

Note:

1. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right.

2. After you had set the EDID, Please restart your HDMI Matrix Switch.

3

Wide Compatibility

Support HDCP 2.2, compatible with HDMI 2.0b. Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc. Output support: Projector, HDTV etc.

4

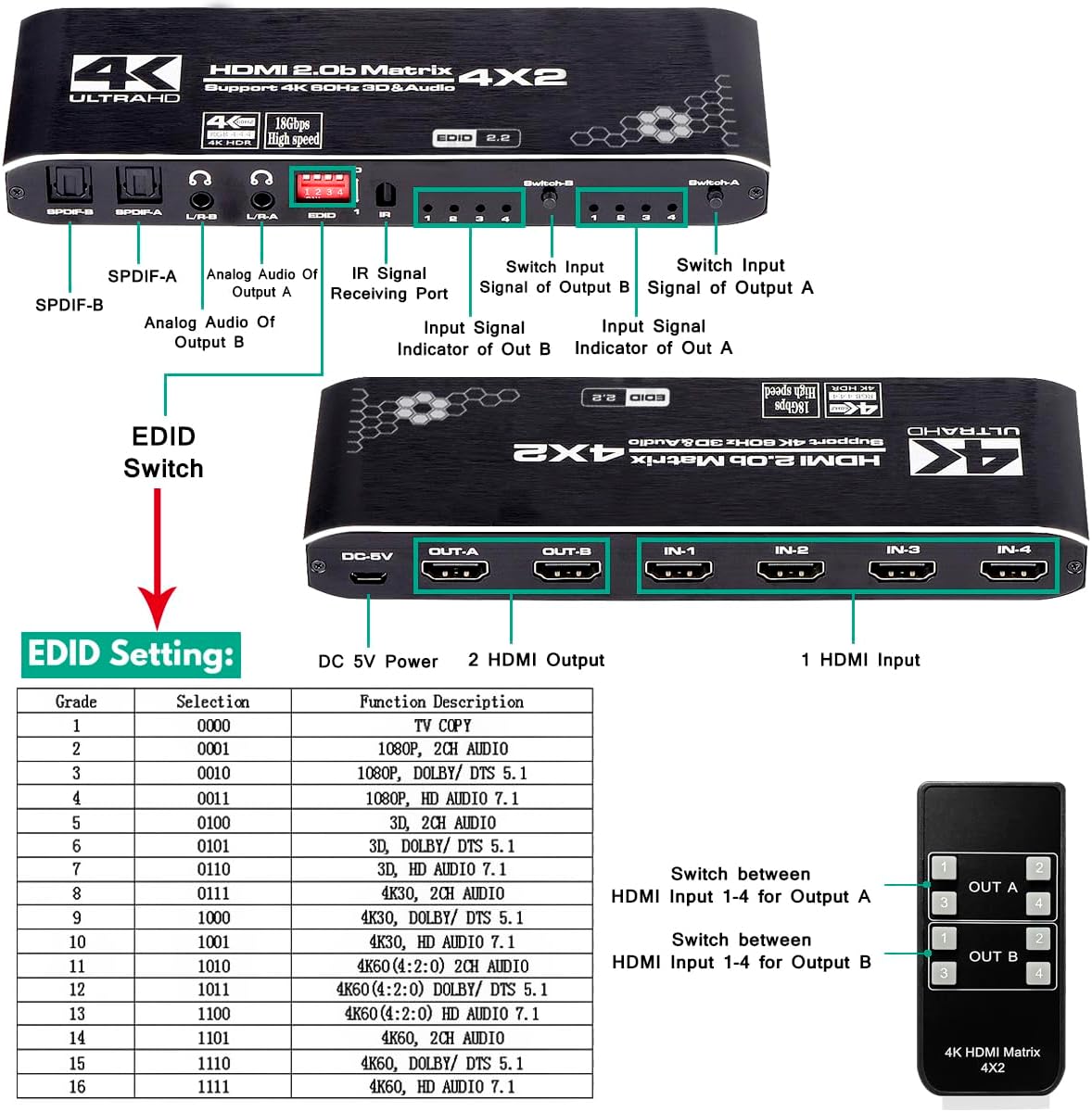

Settable EDID

EDID switch sets the video and audio mode of the HDMI source.

Flexible EDID switching provides 16 switching modes that can be met for different resolution needs.

5

Support 3D video format

Enjoy 3D movie and gaming video, meet the need of gaming or home theater setup, let you have a real, exciting and interesting viewing experience.

6

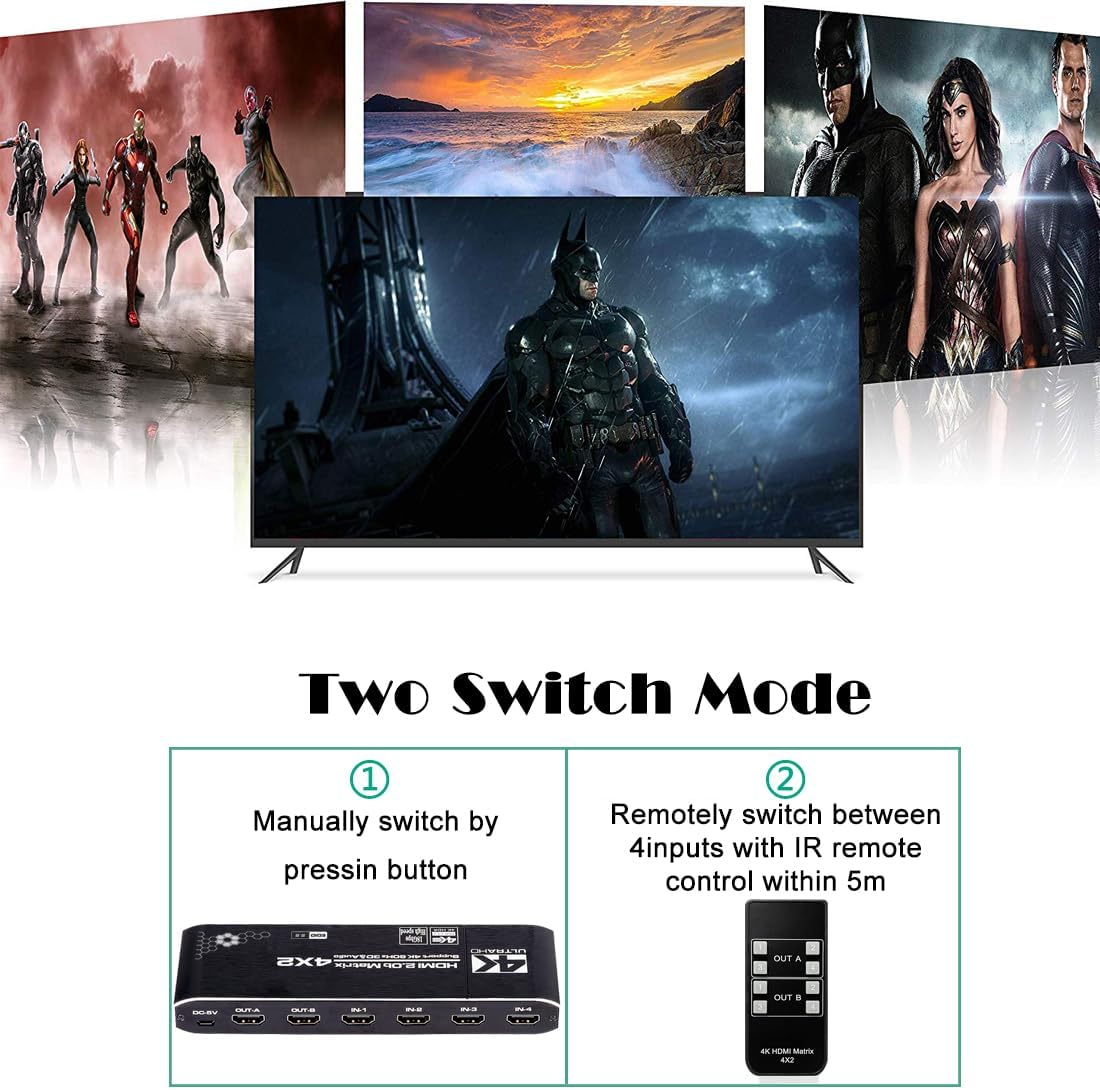

Two Switching Modes

Manual Switch – Simply choose whichever inputs you want with the button on the box.

Remote Control Switch – Effortlessly swap HDMI channels up to 15 ft with the remote

7

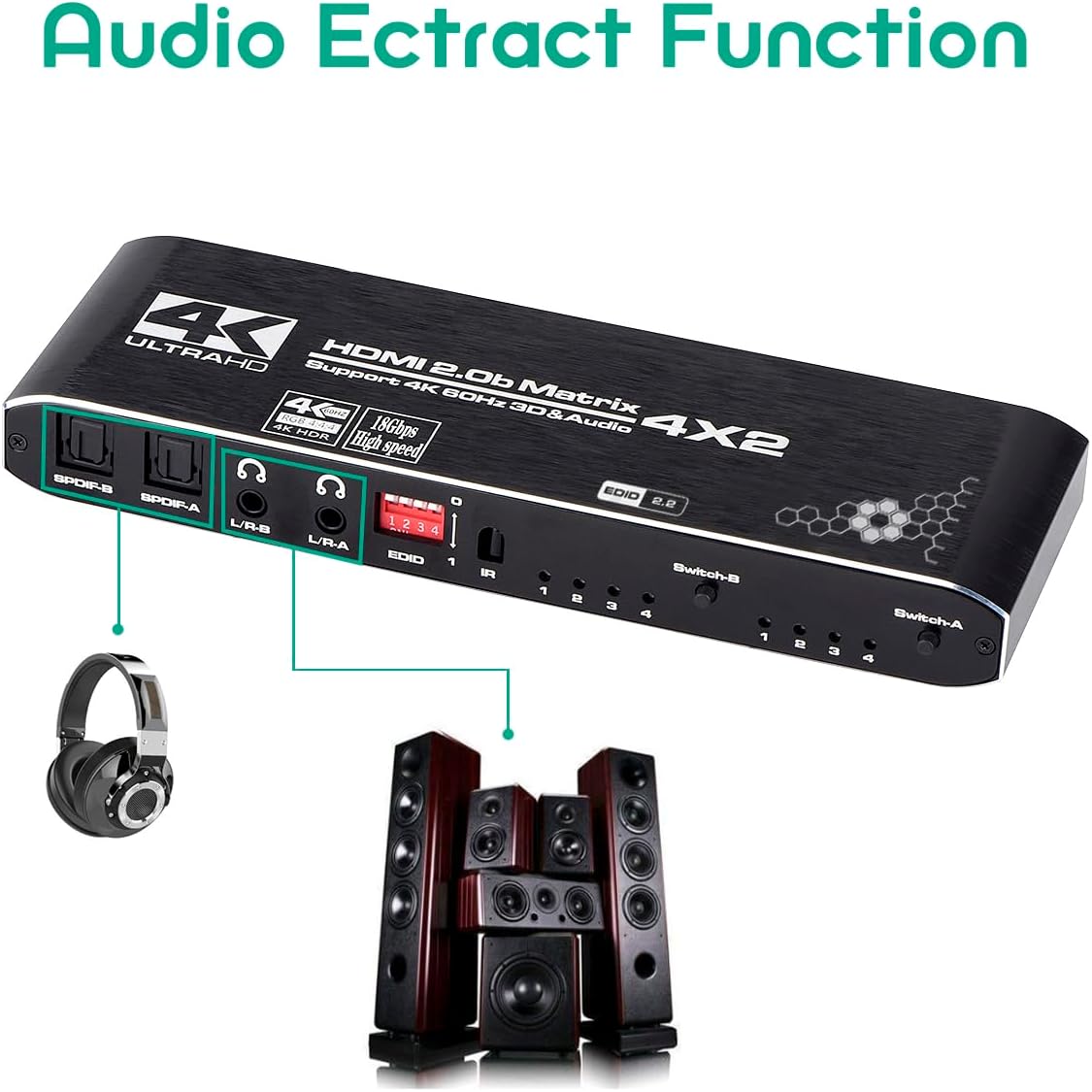

HDMI Audio Extract

Support HDMI audio outputs, 3.5 mm earphone jack and optical output at same time.

Support LPCM/Dolby/DTS 5.1 channel

8

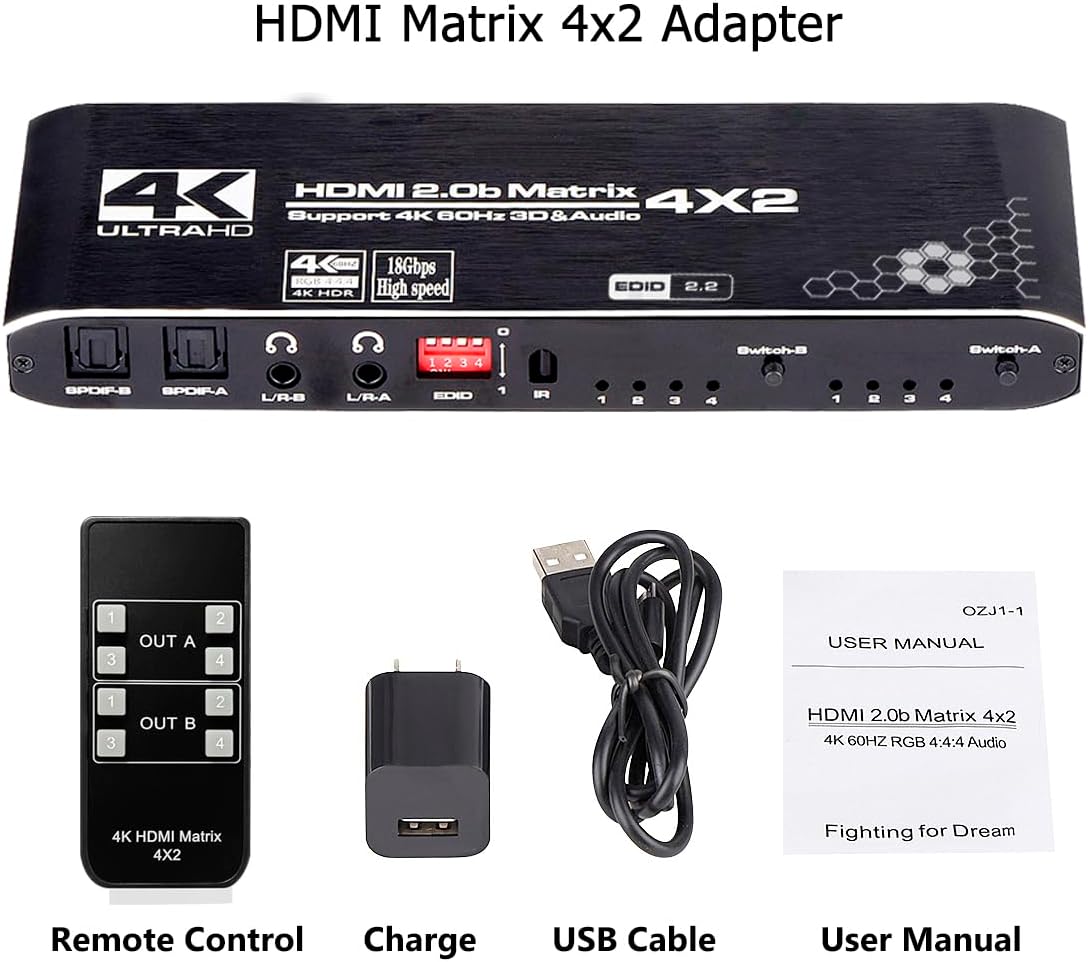

Package contents

1x HDMI Matrix 4×2

1x 5V power adapter

1x IR Remote Control

1x User Manual
