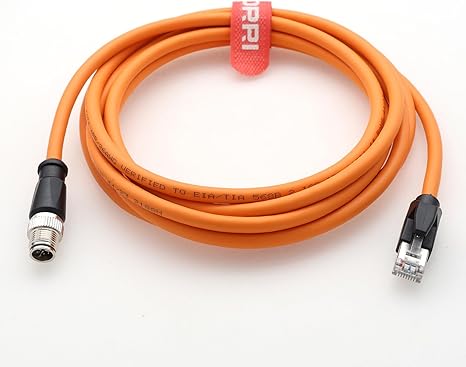

M12 X-Coded 8Pin Male to RJ45 Ethernet Cat6 Network Cable for Cognex Vision Industrial Camera, Barcode Scanner Readers and Automation Sensor Applications, IP67 High Flex Durable Shielded Cable

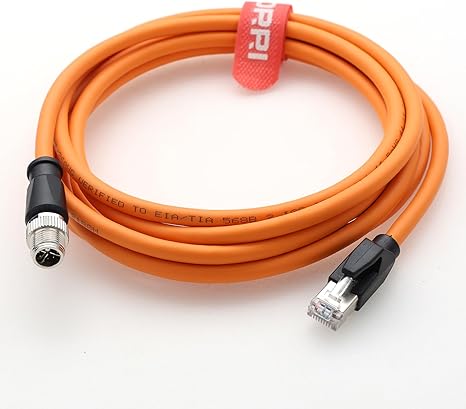

M12 X-Coded 8Pin Male to RJ45 Ethernet Cat6 Network Cable for Cognex Vision Industrial Camera, Barcode Scanner Readers and Automation Sensor Applications, IP67 High Flex Durable Shielded Cable - Image 2
M12 X-Coded 8Pin Male to RJ45 Ethernet Cat6 Network Cable for Cognex Vision Industrial Camera, Barcode Scanner Readers and Automation Sensor Applications, IP67 High Flex Durable Shielded Cable - Image 3
M12 X-Coded 8Pin Male to RJ45 Ethernet Cat6 Network Cable for Cognex Vision Industrial Camera, Barcode Scanner Readers and Automation Sensor Applications, IP67 High Flex Durable Shielded Cable - Image 4

M12 X-Coded 8Pin Male to RJ45 Ethernet Cat6 Network Cable for Cognex Vision Industrial Camera, Barcode Scanner Readers and Automation Sensor Applications, IP67 High Flex Durable Shielded Cable

Original price was: $85.00.Current price is: $43.00.

About this item

  • Perfectly Compatible Cat6 Ethernet Cables. Our cable is perfect for industrial ethernet applications, sensors, actuators, encoders, industrial cameras, ships and other equipment, factory automation process control, packaging label printing equipment,industrial instruments and equipment, EMS circuit board components, industrial safety grating light.
  • Professional Standard Industrial Network Cable.The M12 X-coded 8 pin male to RJ45 cable provides ethernet connectivity and supplies power to the Cognex vision system CCB-84901-2001-xx. Support 500Mhz frequency bandwidth, transmission speed 1Gbps, transmission distance up to 100m/328ft.
  • High Flex and Durable Shielded Ethernet Cable. The M12 connectors are IP67 waterproof rating, protecting against liquids and particulate. RJ45 Connectors and over-molded strain reliefs on both connectors to protect against electrical interference. Highly flexible drag chain cable, abrasion and bending resistance.
  • Signal Transmission Quicker and More Stable Cable. Shielded Metal housing meets EMC/EMI requirements. Braid and foil double shielded anti-interference design provide superior signal integrity, pure copper core and gold-plated connector, making signal transmission quicker and more stable.
  • Custom Cable Length and High-Quality After-Sales Service. 1M, 2M, 3M, 5M, 8M, 10M, 15M, 20M are available, other length can be customed. Each of our cables is crafted from high-quality materials, and rigorously tested before shipping. Any questions or problems will be properly addressed.
Category: Brand:

Description

Product Details

Gigabit M12 X-code and Rj45 Ethernet Connectivity

Cat7e cat 6A CABLE

M12 X-Code cables are a type of category 6e cable (CAT 6A), standardized twisted pair cables for Ethernet. Cat.6A cable Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds up to 328 feet depending on the installation environment. Bandwidth tested up to 750 MHz.

Various length option:Dark Green,Black,Green,Yellow,Orange,Blue are avaiable if you need to custom.

There are also provide Cat.7A cable Dark Green color option which rated for transmission frequencies up to 1000 MHz and supports 10 Gbps.

Straight or Right angle X-code and Rj45 can be customized according to your needs.

The male M12 connector features X-code keying alignment which allows for blind-mating while the recessed pins within the die-cast metal shield prevent damage to the pins during coupling. Equipped with an overmolded housing, these tough cordsets and patchords are rated IP67 and can withstand harsh industrial environments where extreme vibration, shock, chemicals, and temperature are found.

For Cognex cameras Application: Industrial Machine / EtherCAT and EtherNet/IP / Factory Automation

For Cognex cameras

Application: Industrial Machine / EtherCAT and EtherNet/IP / Factory Automation/PROFINET, etc

Gigabit Ethernet Connectivity


M12 X-code 8 pole to RJ45 Ethernet cable

M12 X-Code cable assembly

DRRI as a professional in design and manufacture all kinds of special cables, have accumulated rich experience in development and production for kinds of cables and its related connector adapter.

Gigabit M12 X-code and RJ45 Ethernet Connectivity

we provide all straigh or right angle M12 X-code and RJ45 connector to assemble the cable.

  • Ideal for high-speed data transfer in industrial applications
  • Fixed-position front contacts ensure plug quality and consistent mating with outlets
  • Shielded straight or right angle connectors. Cable lengths up to 100 m (328.08 ft) RJ45 Gigabit Ethernet
  • Overmolded housing is rated IP67 for harsh industrial environments where extreme vibration, shock, chemicals, and temperature are found.
  • M12 X-Code cables are a type of category CAT-7A cable , cable consists of 4 screened pairs, drain wire and additional outer foil.
IP67 M12 to rj45 Shielded Sensor Wire



  • M12 8Pin X-code male to RJ45 plug;
  • Contacts:Brass, Gold Plated
  • Wire: 24AWG, pure copper, PVC jackets
  • Shielded: Braid
  • Cable：PVC high soft outer
  • Twisted pairs maintain signal balance through cable to provide high noise immunity and low return loss
    Package Dimensions 2 x 2 x 2 inches
    Item Weight 3.2 ounces
    ASIN B0FD749Z8D
    Date First Available June 14, 2025
    Manufacturer DRRI
