M12 X-Coded 8 Pin to RJ45 Adapter Cat6 Industrial Ethernet Shielded Connector IP67 Waterproof RJ45 to M12 Bulkhead Jack for Industrial Camera GigE Vision PoE Sensor
M12 X-Coded 8 Pin to RJ45 Adapter Cat6 Industrial Ethernet Shielded Connector IP67 Waterproof RJ45 to M12 Bulkhead Jack for Industrial Camera GigE Vision PoE Sensor - Image 2
M12 X-Coded 8 Pin to RJ45 Adapter Cat6 Industrial Ethernet Shielded Connector IP67 Waterproof RJ45 to M12 Bulkhead Jack for Industrial Camera GigE Vision PoE Sensor - Image 3
M12 X-Coded 8 Pin to RJ45 Adapter Cat6 Industrial Ethernet Shielded Connector IP67 Waterproof RJ45 to M12 Bulkhead Jack for Industrial Camera GigE Vision PoE Sensor - Image 4
M12 X-Coded 8 Pin to RJ45 Adapter Cat6 Industrial Ethernet Shielded Connector IP67 Waterproof RJ45 to M12 Bulkhead Jack for Industrial Camera GigE Vision PoE Sensor - Image 5
M12 X-Coded 8 Pin to RJ45 Adapter Cat6 Industrial Ethernet Shielded Connector IP67 Waterproof RJ45 to M12 Bulkhead Jack for Industrial Camera GigE Vision PoE Sensor - Image 6
M12 X-Coded 8 Pin to RJ45 Adapter Cat6 Industrial Ethernet Shielded Connector IP67 Waterproof RJ45 to M12 Bulkhead Jack for Industrial Camera GigE Vision PoE Sensor - Image 7
M12 X-Coded 8 Pin to RJ45 Adapter Cat6 Industrial Ethernet Shielded Connector IP67 Waterproof RJ45 to M12 Bulkhead Jack for Industrial Camera GigE Vision PoE Sensor - Image 8

M12 X-Coded 8 Pin to RJ45 Adapter Cat6 Industrial Ethernet Shielded Connector IP67 Waterproof RJ45 to M12 Bulkhead Jack for Industrial Camera GigE Vision PoE Sensor

Original price was: $49.00.Current price is: $34.00.

About this item

  • 【M12 to RJ45】M12 to RJ45 Adapter,X-Coding,8 Pin,Shielded Nickel Plated,Golated plated Contacts,26AWG. This RJ45 M12 connector is compatible with Cat6, Cat5e, Cat5 networks, with a maximum transmission rate of 1Gb/s,Transmission Frequency is 250MHz.
  • 【IP67 Protection Level】The M12 Ethernet connector adopts a threaded connection method, When mated and screwed, the M12 connector can achieve IP67 protection class.

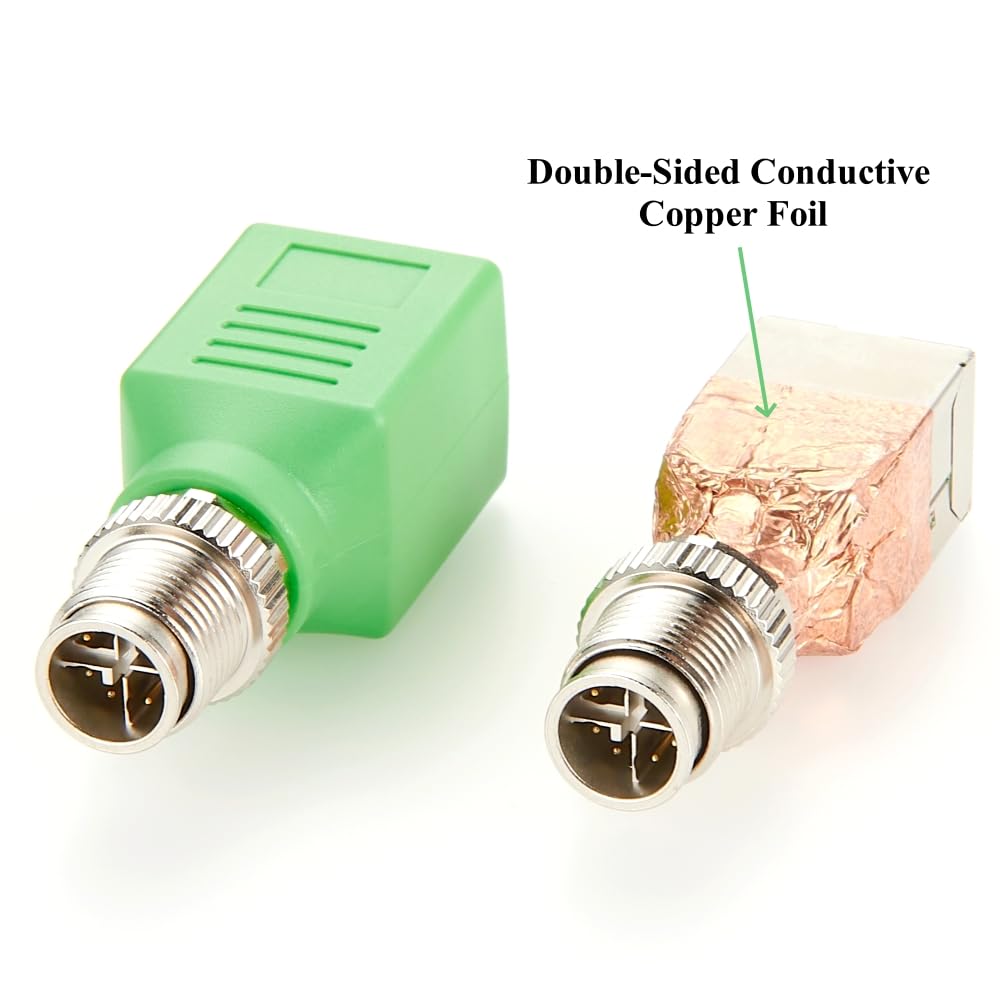

  • 【High quality &100% Shielded】M12 8pin X Code to RJ45 Cat6 Industrial Ethernet Adapter use professional high quality PVC makes it Insulation and flame retardant. Gold plated pins for excellent connectivity. Thread locking mechanism,anti vibration locking design,12mm thread joint. 100% Shielded,ensure the stability and reliability of data and signals.
  • 【Easy to Use】12mm Connector Plug:Easy quick connect and disconnect coupling;No tools required for installation and removal,M12 to RJ45 Ethernet Adapter provide quick and easy connection between field devices and terminal connections,flexible and convenient plug-and-play.
  • 【Application】M12 8-Pin to RJ45 Connector widely used in Miniature sensors Industrial camera Electrical bike Packaging,Labeling & Logistic Factory automation and fieldbus module.
Category: Brand:

Description

Product Details
  • Package Dimensions ‏ : ‎ 6.3 x 4.8 x 1.8 inches; 2.12 ounces
  • Item model number ‏ : ‎ PCM-HD-0082
  • Date First Available ‏ : ‎ December 24, 2024
  • Manufacturer ‏ : ‎ Dongguanjindiedianziyouxiangongsi
  • ASIN ‏ : ‎ B0DRNSFBJM

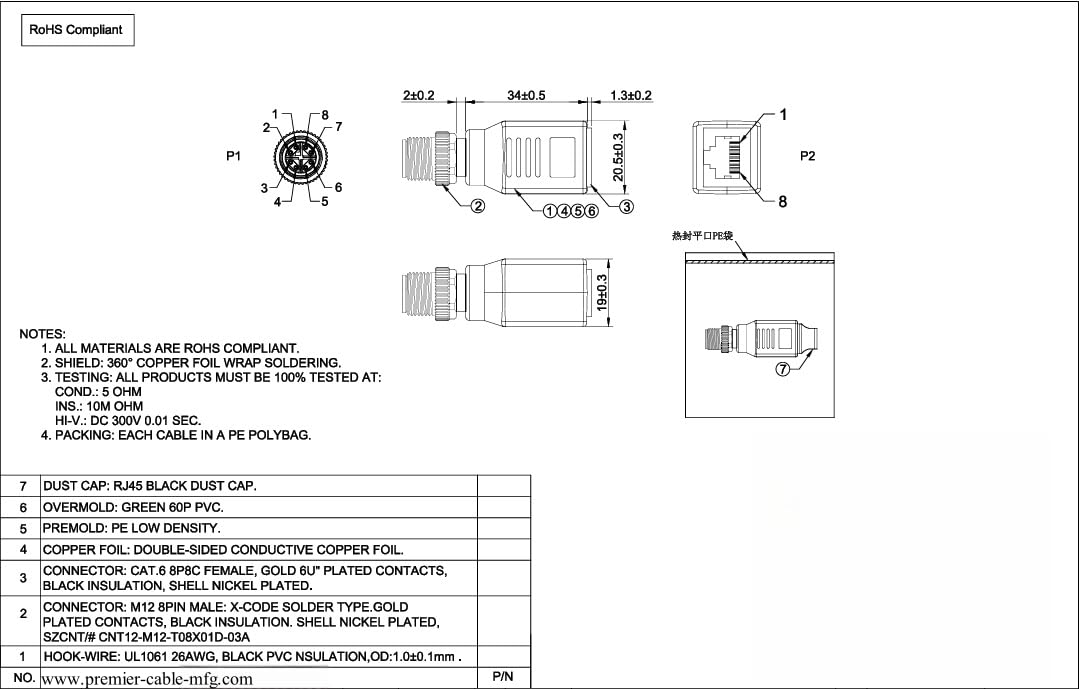

Product Specification:

Connector A: M12 8Pin X Coded Male Connector

Connector B: RJ45 Cat6 Ethernet Female Connector

1.Contaet Plating Material: Golated plating

2.Transmission Frequency: 250MHz

3.Maximum Transmission Rate: 1Gbps

4.Operating Temperature: -25°C to +85°C

Application:

1.Industrial automation and control systems: applied to automation control equipment and PLC (programmable logic controller)

2.Mechanical equipment and robots

3.Data acquisition and sensor networks

4.Outdoor and harsh environment communication

5.Industrial Camera GigE Vision Sensor PoE
