Sale!

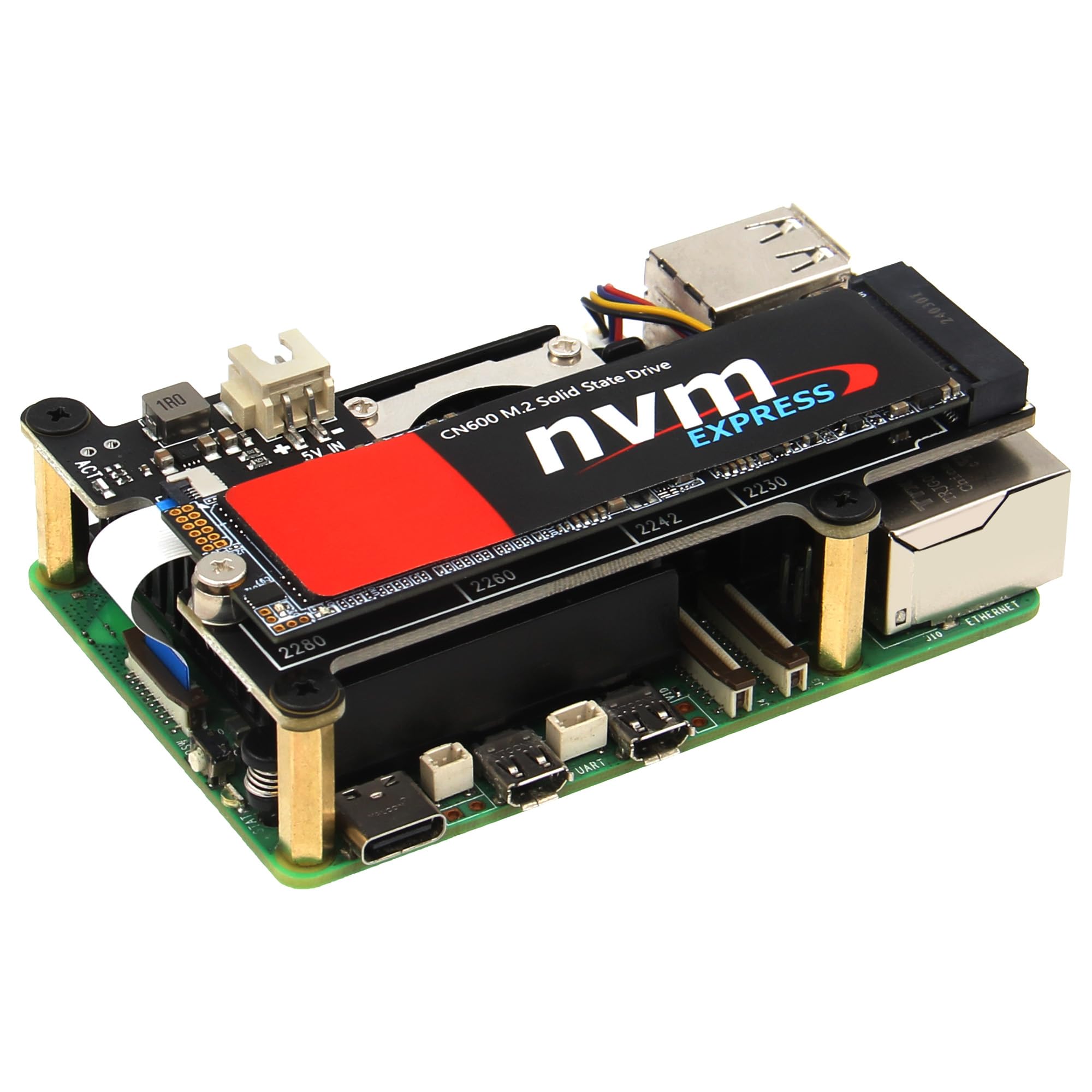

Geekworm X1001 PCIe to M.2 HAT Key-M NVMe SSD PIP PCIe Peripheral Board for Raspberry Pi 5 Support M.2 2230/2242/2260/2280 SSD
Geekworm X1001 PCIe to M.2 HAT Key-M NVMe SSD PIP PCIe Peripheral Board for Raspberry Pi 5 Support M.2 2230/2242/2260/2280 SSD - Image 2
Geekworm X1001 PCIe to M.2 HAT Key-M NVMe SSD PIP PCIe Peripheral Board for Raspberry Pi 5 Support M.2 2230/2242/2260/2280 SSD - Image 3
Geekworm X1001 PCIe to M.2 HAT Key-M NVMe SSD PIP PCIe Peripheral Board for Raspberry Pi 5 Support M.2 2230/2242/2260/2280 SSD - Image 4
Geekworm X1001 PCIe to M.2 HAT Key-M NVMe SSD PIP PCIe Peripheral Board for Raspberry Pi 5 Support M.2 2230/2242/2260/2280 SSD - Image 5
Geekworm X1001 PCIe to M.2 HAT Key-M NVMe SSD PIP PCIe Peripheral Board for Raspberry Pi 5 Support M.2 2230/2242/2260/2280 SSD - Image 6
Geekworm X1001 PCIe to M.2 HAT Key-M NVMe SSD PIP PCIe Peripheral Board for Raspberry Pi 5 Support M.2 2230/2242/2260/2280 SSD - Image 7

Geekworm X1001 PCIe to M.2 HAT Key-M NVMe SSD PIP PCIe Peripheral Board for Raspberry Pi 5 Support M.2 2230/2242/2260/2280 SSD

Original price was: $49.00.Current price is: $31.00.

About this item

  • Compatibility: Pi 5 PCIe M.2 HAT only compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB SBC (NOT include Raspberry Pi 5), Model: X1001

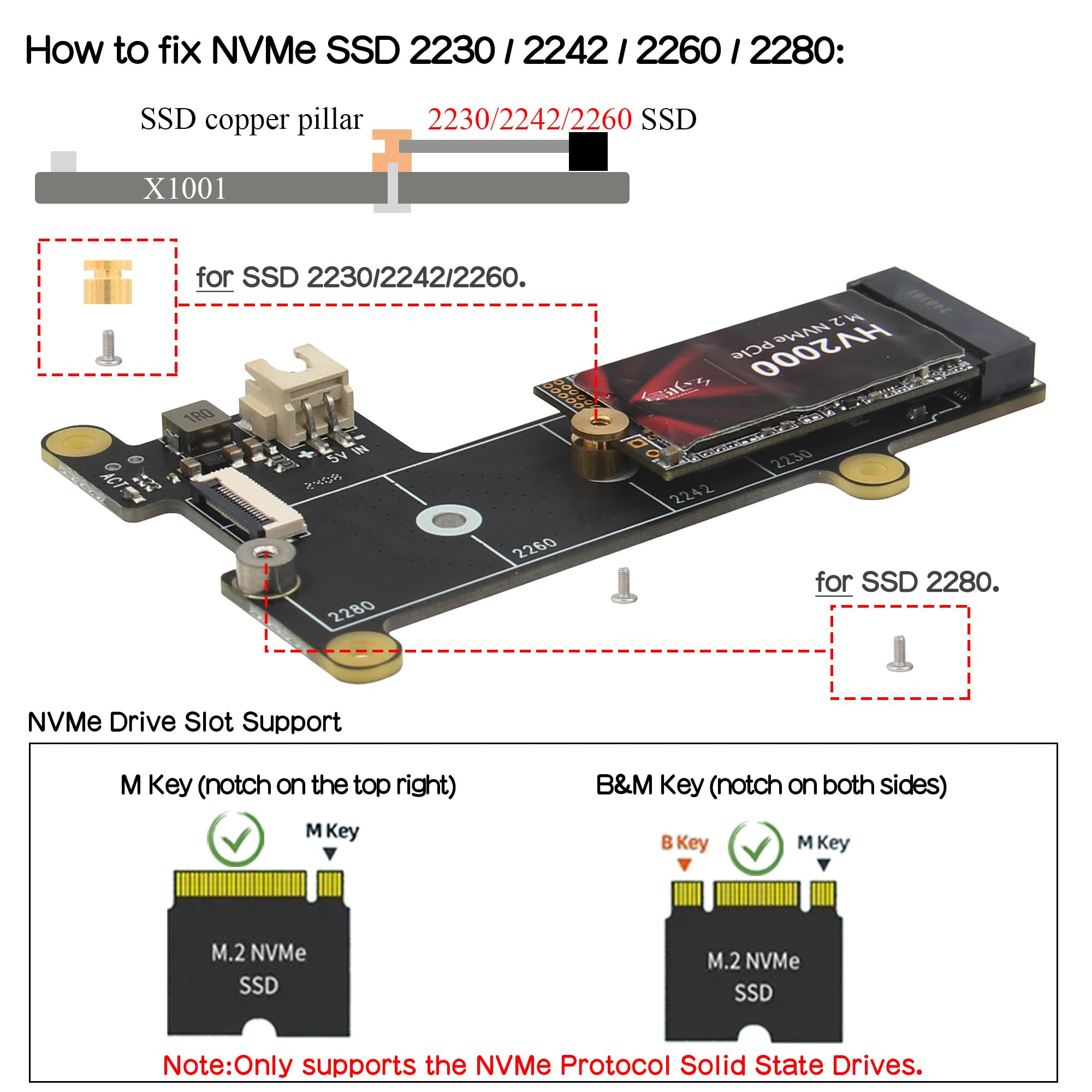

  • M2 Key-M NVMe SSD Supported: Support M.2 KEY-M NVMe SSD 2230/2242/2260/2280 length installation; Comes with SSD copper pillar for 2230/2242/2260 SSD installation
  • User Manual and FAQ: Google Geekworm WiKi and search X1001 and its FAQ; Refer to the FAQ to do troubleshoot step by step if can’t boot/recognize from NVMe SSD
  • Designed as a basic PCIe expansion board for the Raspberry Pi 5, the X1001 features limited standalone hardware functionality and requires proper OS configuration, stable FFC cable connection, and compatibility between firmware and SSDs for reliable operation.
  • How to Power: Power the X1001 shield directly from the FFC PCIe ribbon; Use the PD 27W power adapter for Raspberry Pi 5
Category: Brand:

Description

Product Details
Series ‎X1001
Item model number ‎X1001
Operating System ‎Raspberry Pi OS Bookworm
Item Weight ‎0.776 ounces
Product Dimensions ‎3.42 x 2.2 x 0.04 inches
Item Dimensions LxWxH ‎3.42 x 2.2 x 0.04 inches
Color ‎Black
Manufacturer ‎Geekworm
ASIN ‎B0CPPGGDQT
X1001

Specifications

Model X1001
Compatible With for Raspberry Pi 5 2GB/4GB/8GB/16GB
PCIe Connector 1x 16-pin pitch 0.5mm
SSD Connector 1x M.2 KEY-M 67P
M.2 Key-M NVMe SSD Supported Single 2230/2242/2260/2280

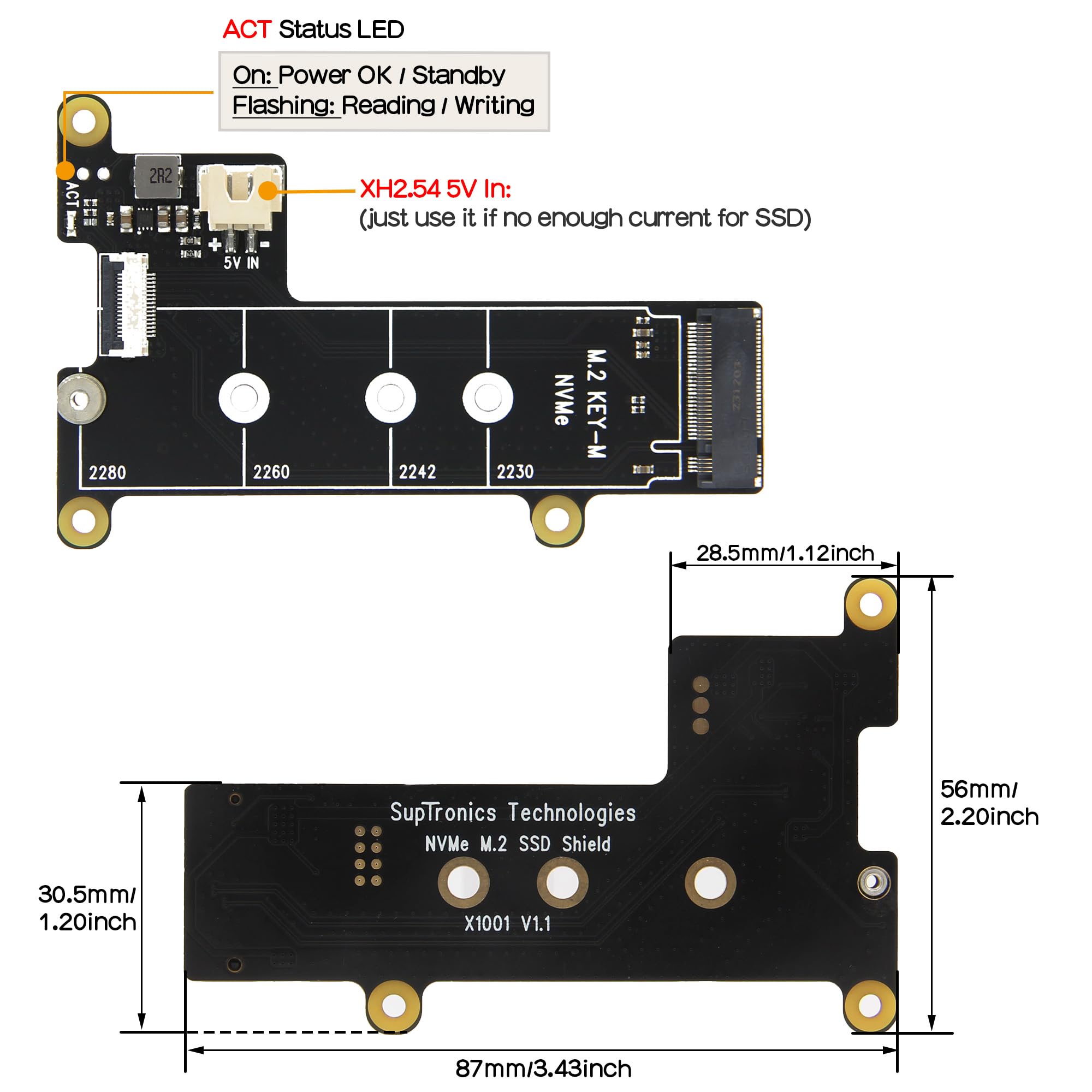

PCB Size 87 mm x 56 mm

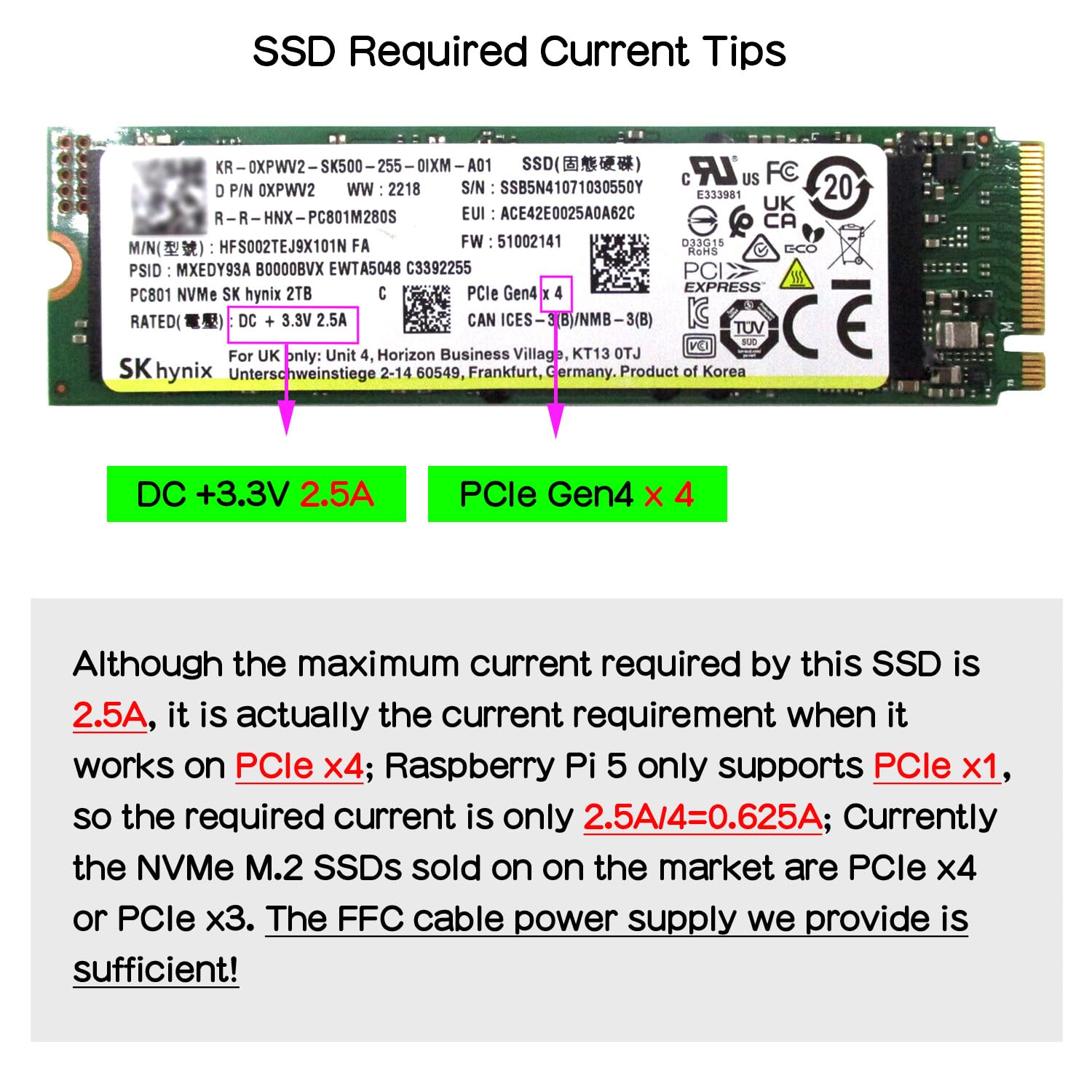

Power Supply 5Vdc +/-5% power via FFC, converted to 3.3V max 3.5A to power the SSD

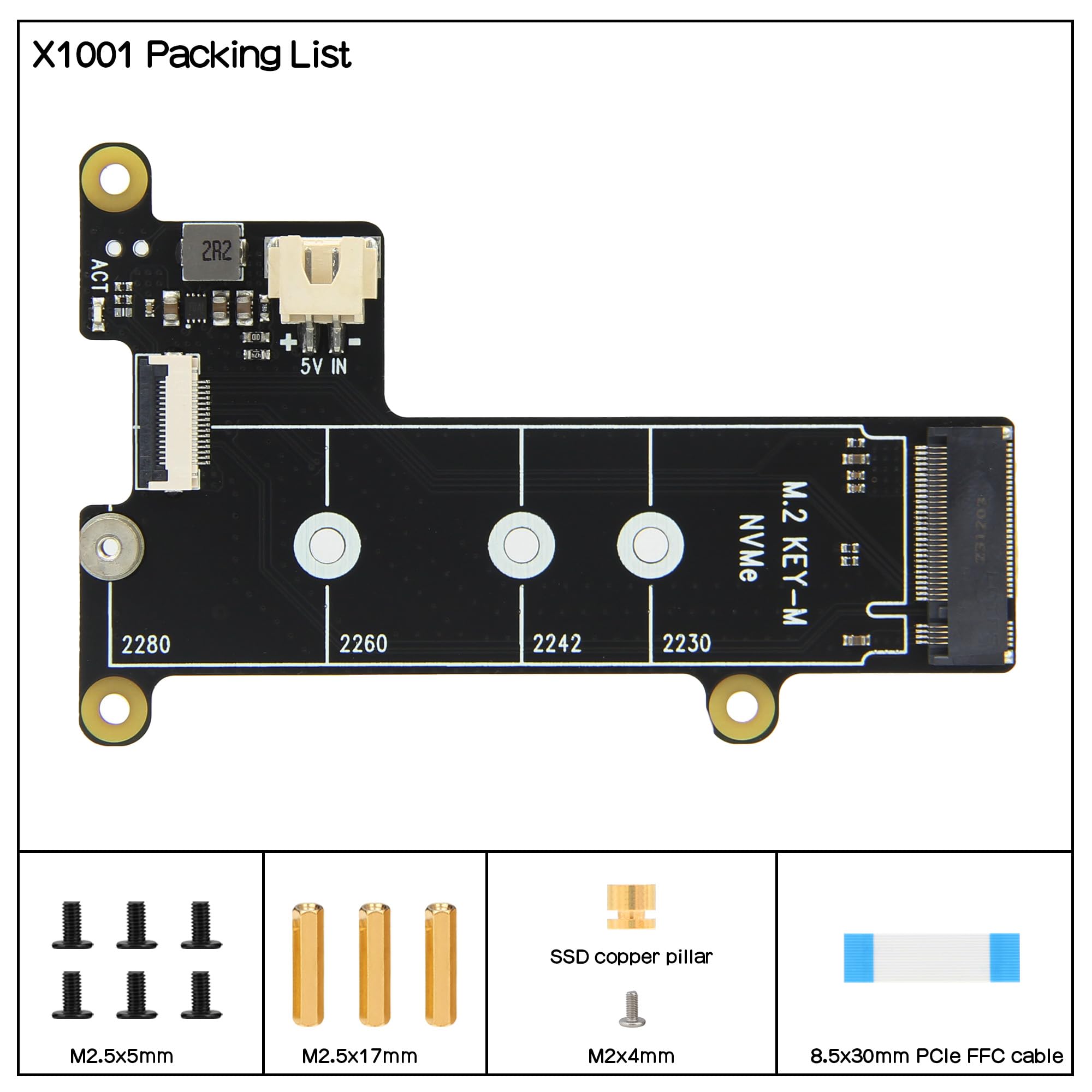

Packing List 1 x X1001 V1.1 NVMe SSD Shield; 1 x PCIe FFC cable(30mm length); 3 x M2.5x17mm F/F Spacers; 6 x M2.5x5mm Screws; 1 x M2x4mm Screw
X1001
X1001
