Description
Product Details
| Hardware Interface | USB 3.1 Type A |
| Brand | GeeekPi |
| Hardware Platform | Raspberry Pi |
| Memory Storage Capacity | 4 TB |
| Compatible Devices | Raspberry Pi 4 Model B |
Descriptions:

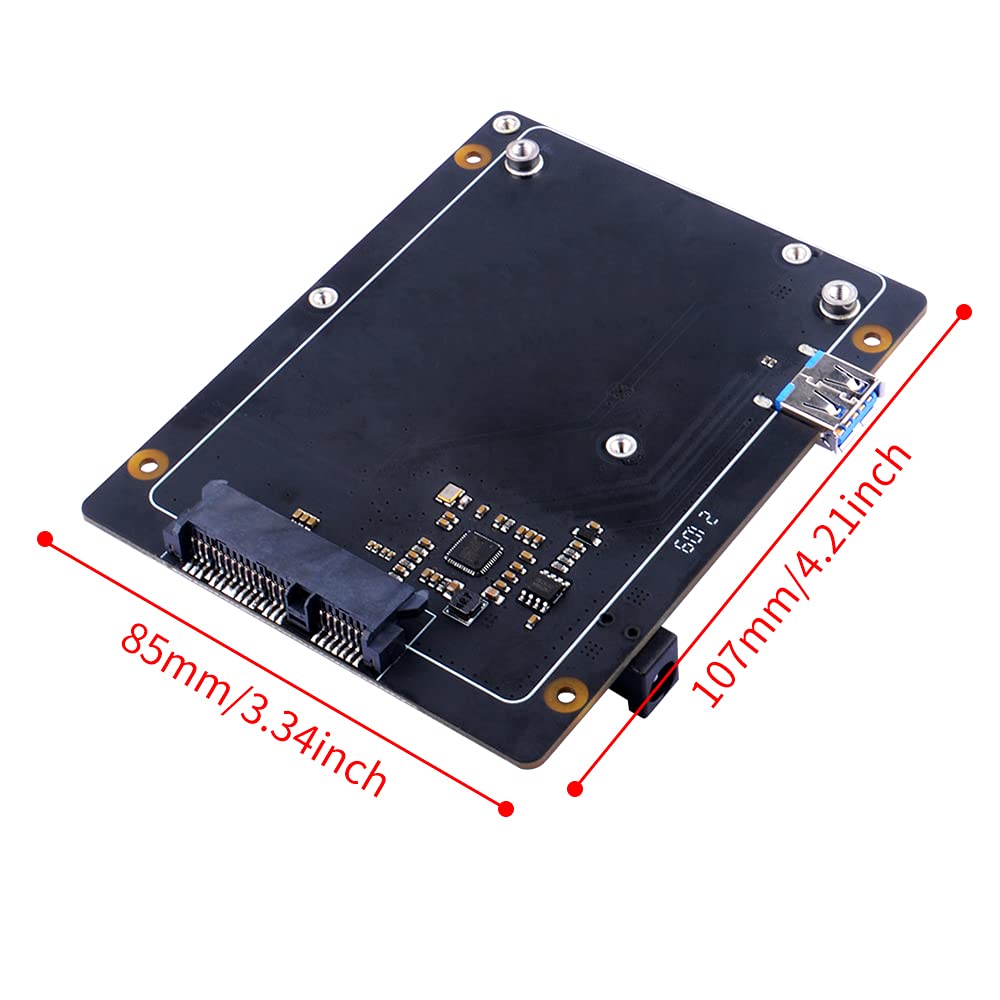

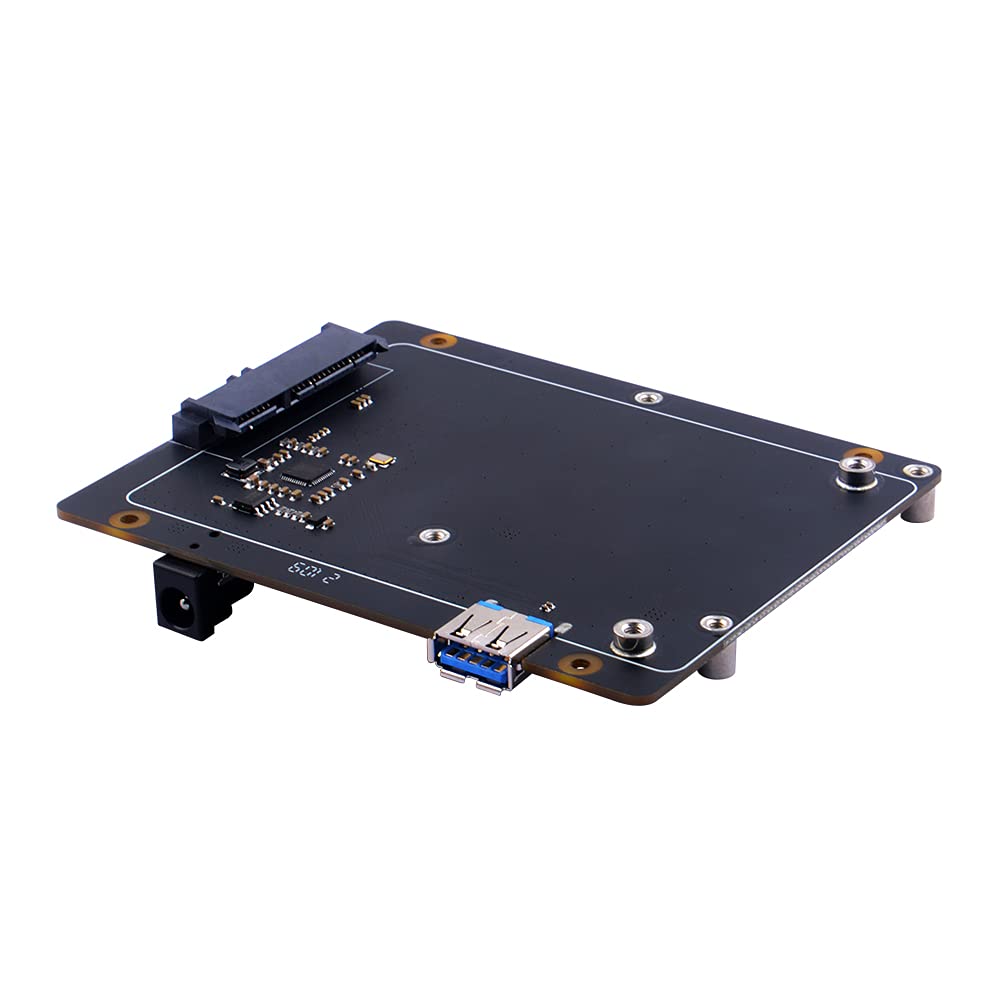

X825 is Raspberry Pi 4 Model B 2.5 inch SATA HDD/SSD Storage Expansion Board.
You can make your own cloud storage or private NAS storage system at your home.
The X825 expansion board provides a complete storage solution for newest raspberry pi 4B.
It supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD).
Only 2.5 inch SATA interface HDD/SDD hard disk is suitable for X825 Board.
Upgraded to USB3.1 Gen1 port.
Features:

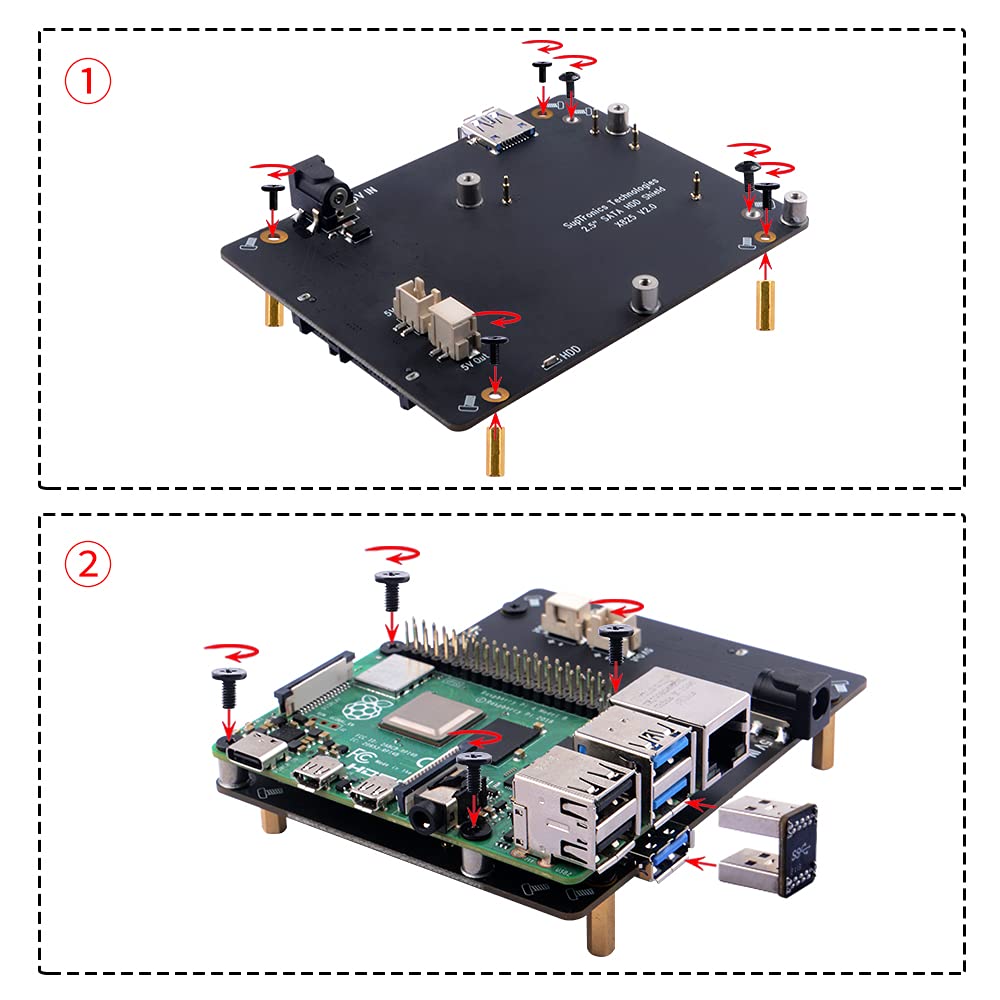

Easy to assemble
OS compatiable: All Raspberry Pi operating systems
USB3.1 Gen1 Port
Supports upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) (Theoretically it can work with 6TB or 8TB as well. But actually we do not test the X825 board with 6tb or 8tb HDD, you can have a try.)

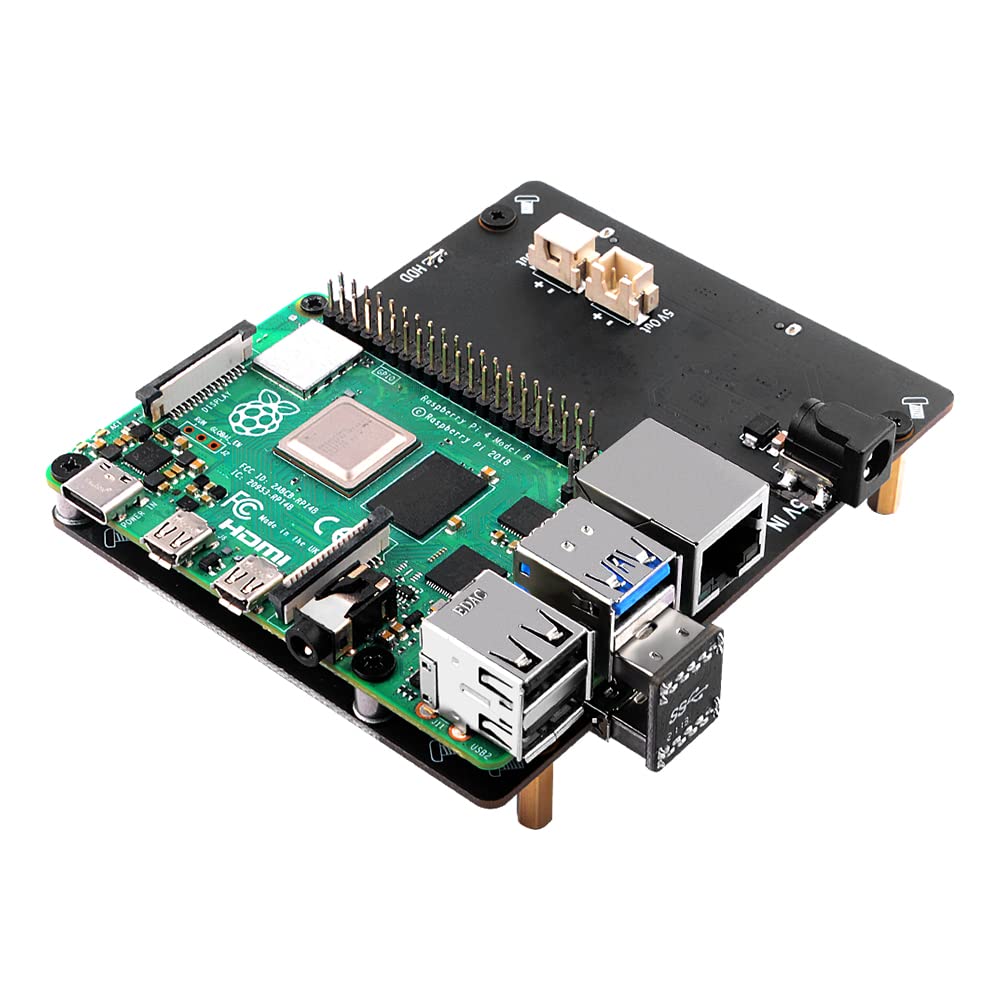

Ideal storage solution for Raspberry Pi 4 Model B

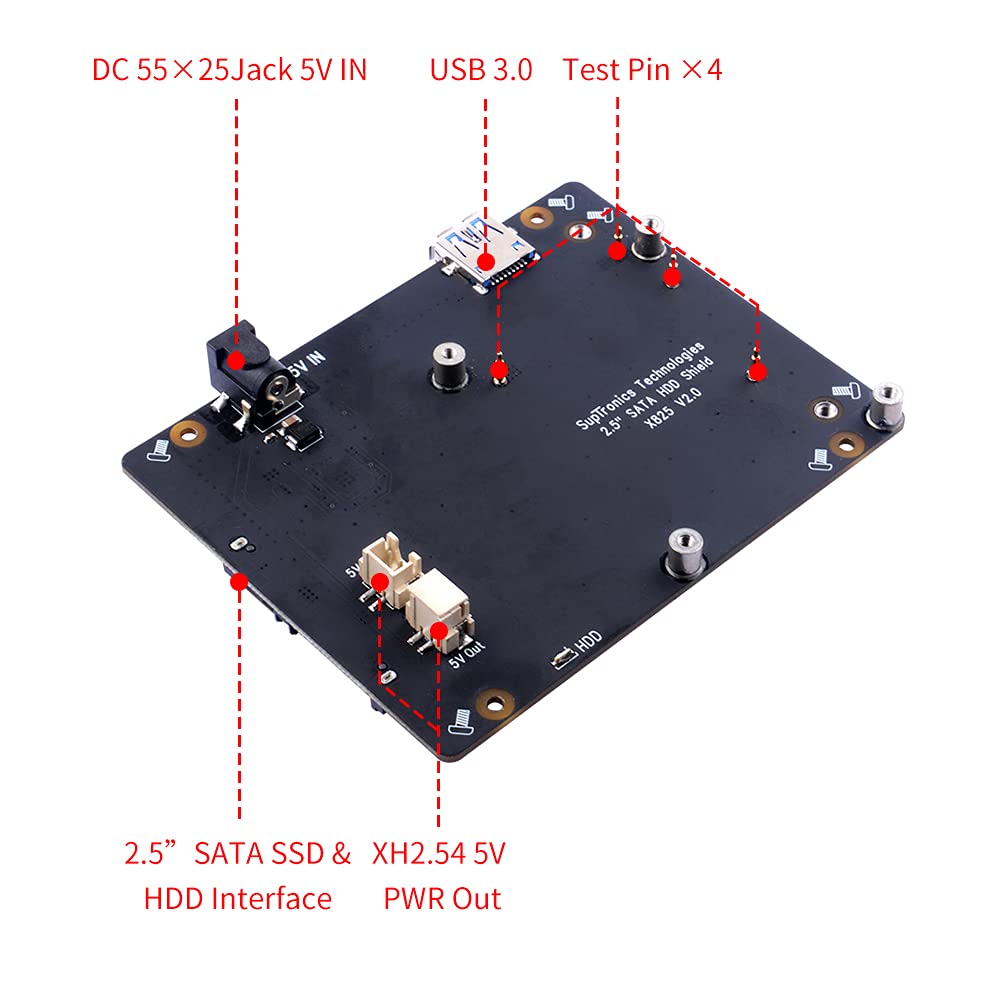

On-board push button to control power on /off (Press-ON, Hold the button pressed at least 2s -OFF)
Powers the Raspberry Pi via Pi’s 40-pin header
LED red indicator indicates powered status and blue indicator indicates drive status
USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
Quick file transfer with high-speed USB 3.1 connectivity from a PC or a Mac
Powers the Raspberry Pi – no additional power supply for RPi 4

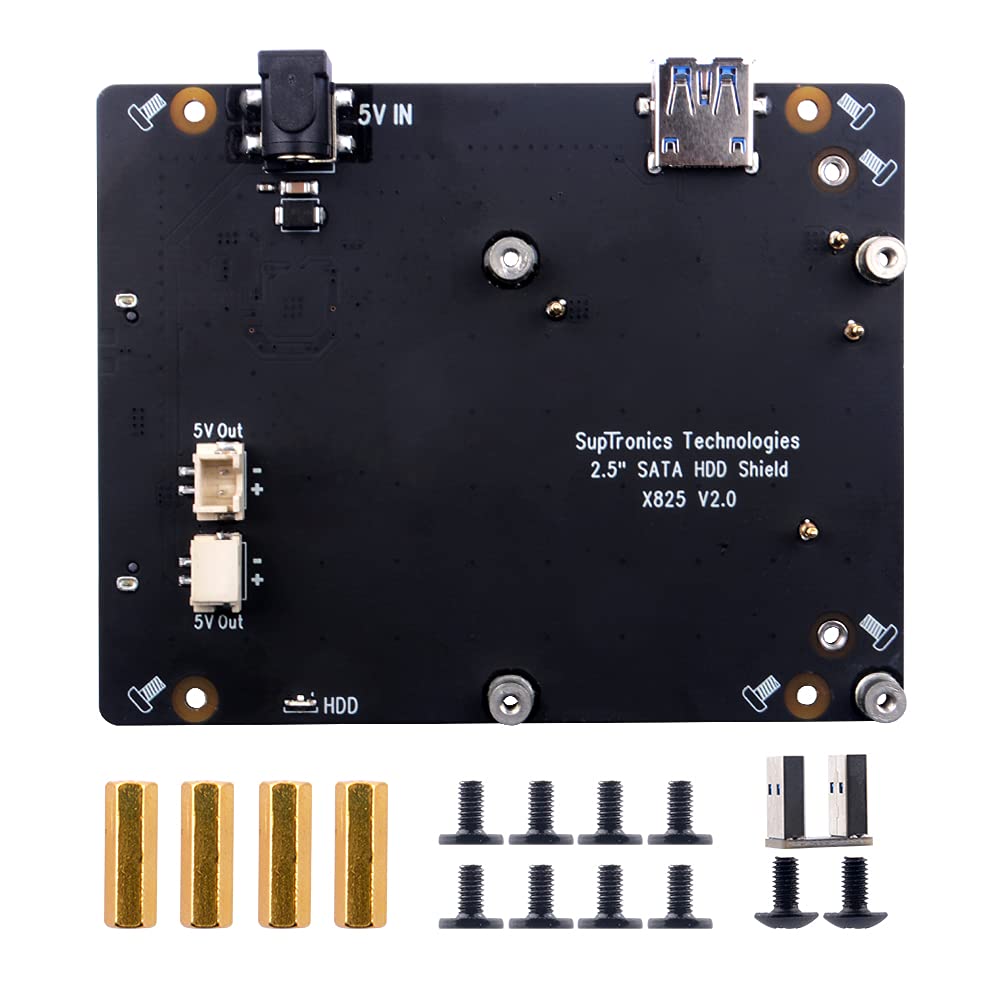

Package Includes:
1 x X825 V2.0 Expansion Board
1 x USB 3.1 connector
1 x Mounting screw package
Note:
Not include the raspberry pi and the 2.5″ SATA SSD.
| Hard Disk Form Factor | 2.5 Inches |
|---|---|
| Max Number of Supported Devices | 1 |
| Data Transfer Rate | 6 Gigabits Per Second |
| Manufacturer | GeeekPi |
| UPC | 192530263793 192530263595 |
| Package Dimensions | 5 x 4 x 1.3 inches |
| Item Weight | 3.2 ounces |
| ASIN | B086GST5K6 |
| Item model number | EZ-0082 |
