GeeekPi N04 M.2 NVMe to PCIe Adapter for Raspberry Pi 5, Support M.2 NVMe SSD 2230 2242 2260 2280
GeeekPi N04 M.2 NVMe to PCIe Adapter for Raspberry Pi 5, Support M.2 NVMe SSD 2230 2242 2260 2280 - Image 2
GeeekPi N04 M.2 NVMe to PCIe Adapter for Raspberry Pi 5, Support M.2 NVMe SSD 2230 2242 2260 2280 - Image 3
GeeekPi N04 M.2 NVMe to PCIe Adapter for Raspberry Pi 5, Support M.2 NVMe SSD 2230 2242 2260 2280 - Image 4
GeeekPi N04 M.2 NVMe to PCIe Adapter for Raspberry Pi 5, Support M.2 NVMe SSD 2230 2242 2260 2280 - Image 5
GeeekPi N04 M.2 NVMe to PCIe Adapter for Raspberry Pi 5, Support M.2 NVMe SSD 2230 2242 2260 2280 - Image 6
GeeekPi N04 M.2 NVMe to PCIe Adapter for Raspberry Pi 5, Support M.2 NVMe SSD 2230 2242 2260 2280 - Image 7
GeeekPi N04 M.2 NVMe to PCIe Adapter for Raspberry Pi 5, Support M.2 NVMe SSD 2230 2242 2260 2280 - Image 8
GeeekPi N04 M.2 NVMe to PCIe Adapter for Raspberry Pi 5, Support M.2 NVMe SSD 2230 2242 2260 2280 - Image 9

GeeekPi N04 M.2 NVMe to PCIe Adapter for Raspberry Pi 5, Support M.2 NVMe SSD 2230 2242 2260 2280

Original price was: $69.00.Current price is: $37.00.

About this item

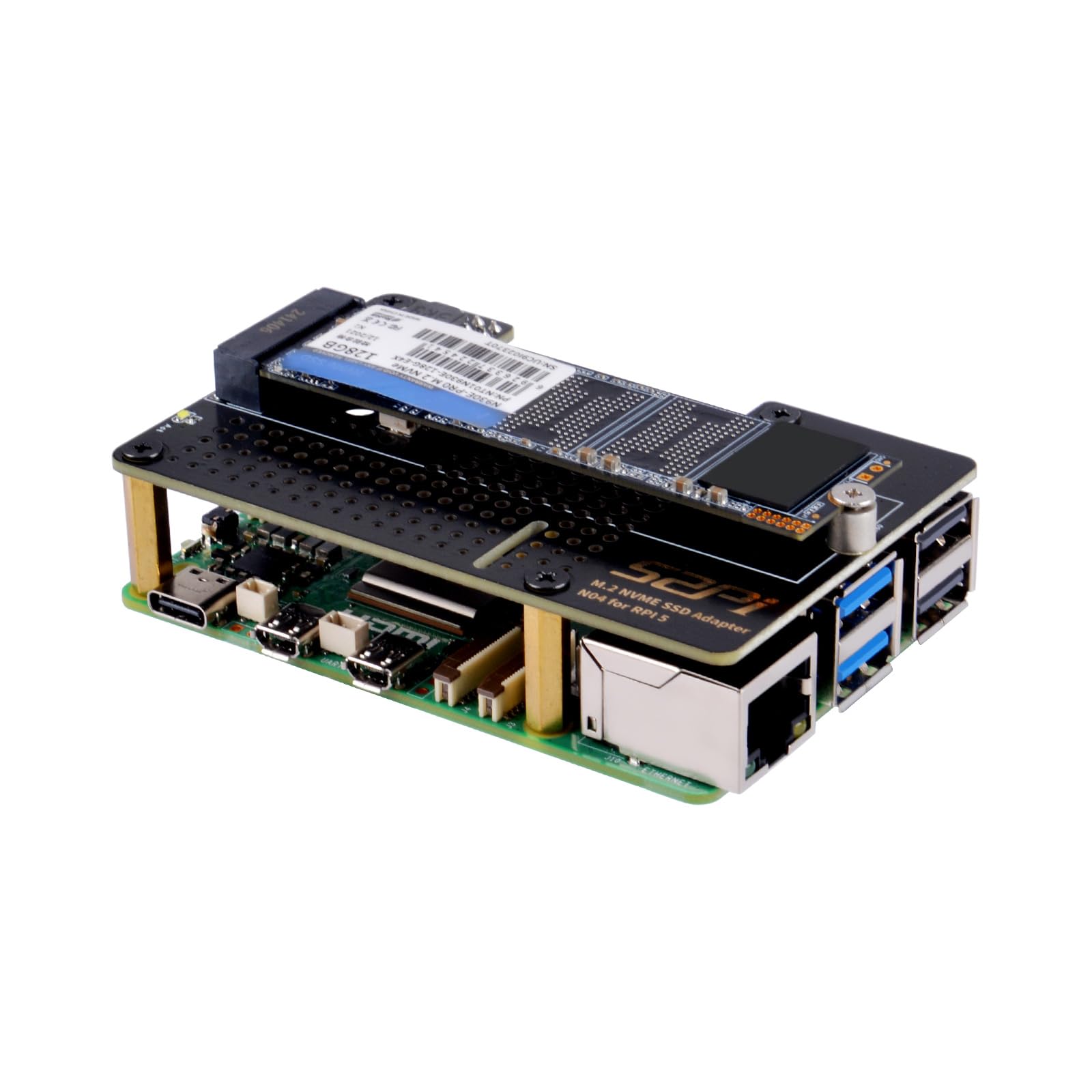

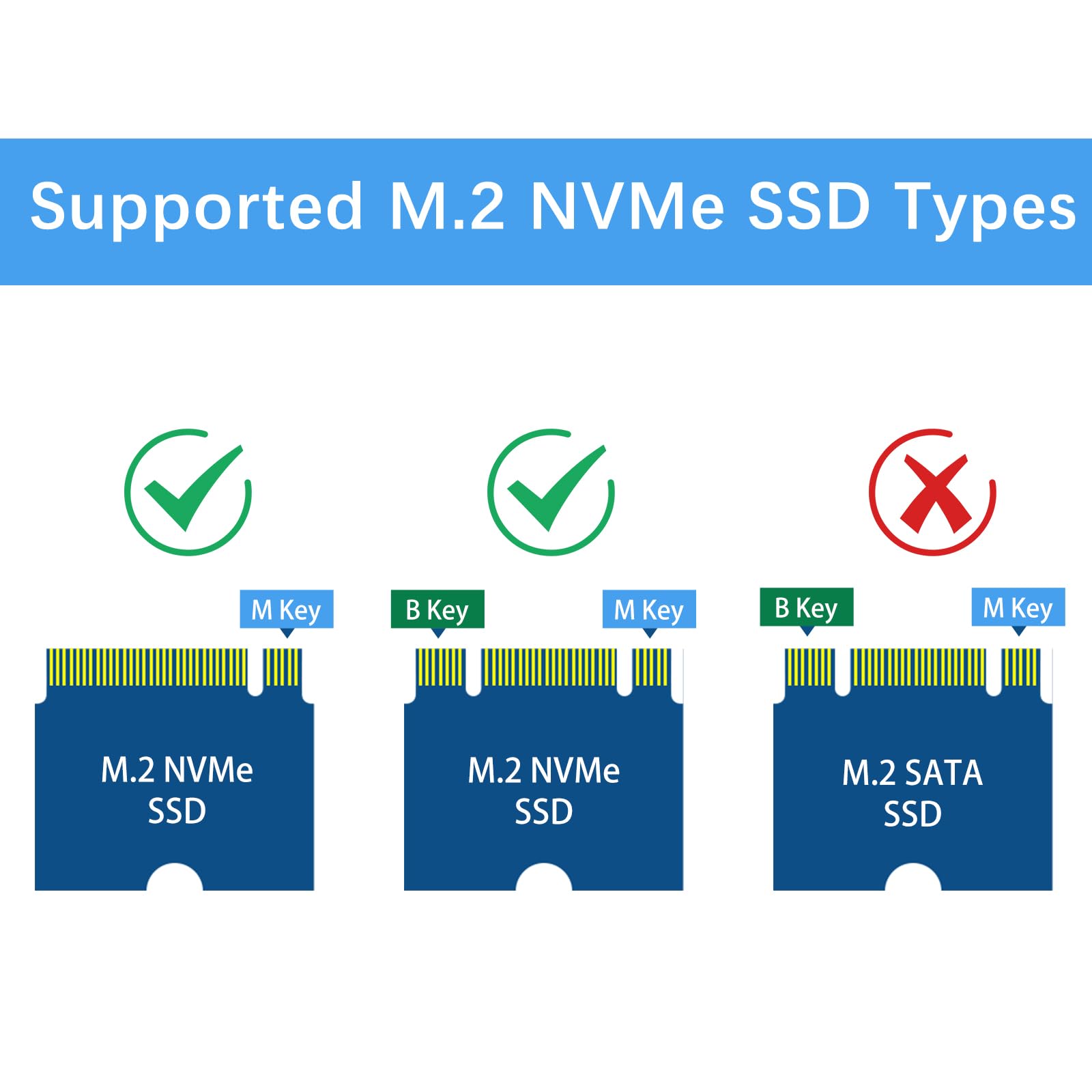

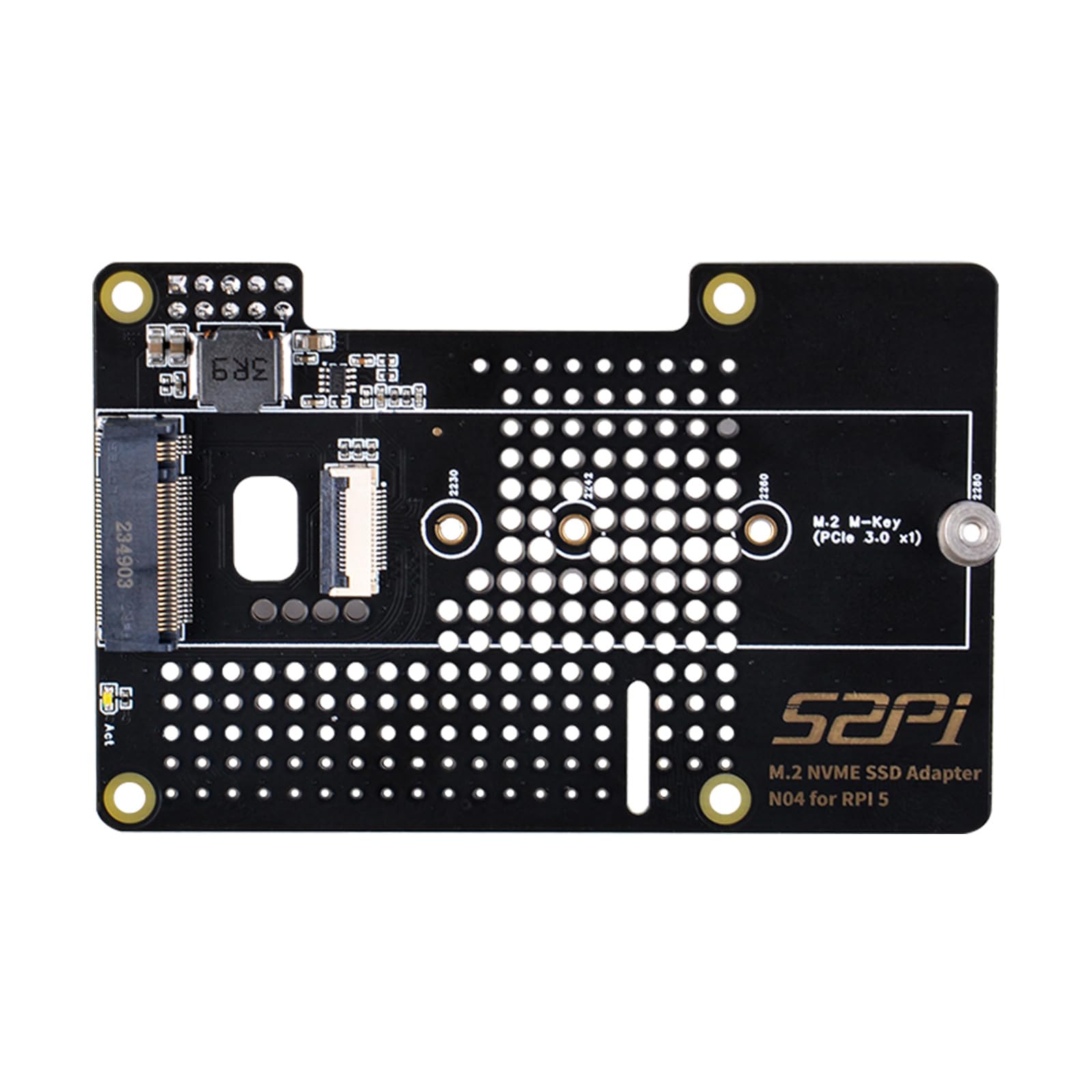

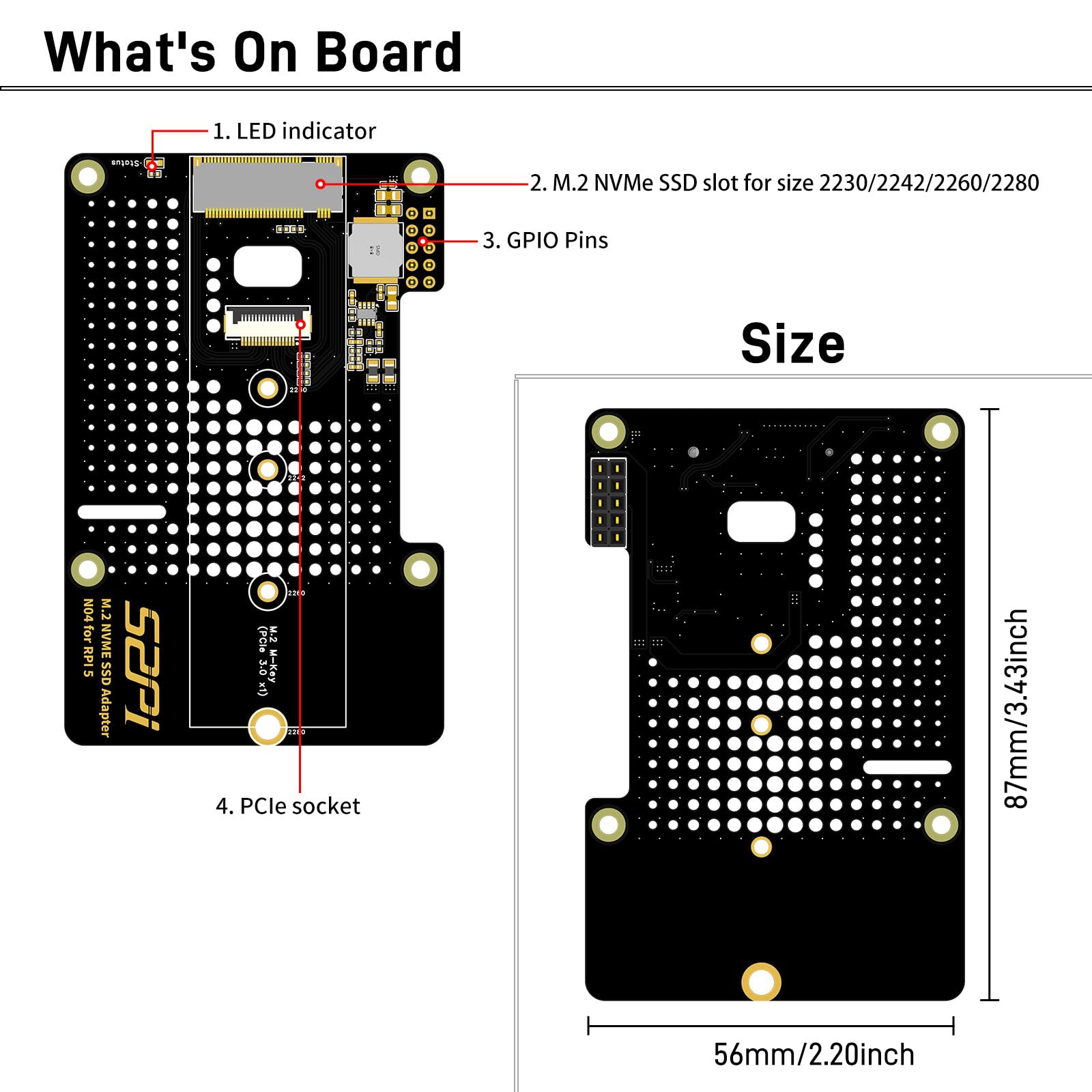

  • N04 M.2 NVMe to PCIe Adapter is designed for Raspberry Pi 5. It supports the installation of NVMe (M-key) drives in M.2 format sizes 2230, 2242, 2260 and 2280. Extra custom CNC SSD mount screw, no soldering required.
  • For a Metal Case, please refer to ASIN B0CYNX2P9Z ; Metal Case with Cooling Fan ( ASIN B0CJM52Y4H ) ; Metal Case with Active Cooler ( ASIN: B0CMZ84GM8 ) ; Aluminum Case with Cooling Fan ( ASIN B0CLFYDT8Y ) ; Aluminum Case with Active Cooler ( ASIN B0CMZG2R73 ).
  • PCIe x1 interface in both Gen2 & Gen3 standards. The short trace routing of PCIe is more reliable and faster, fully meeting the signal requirements of PCIe 3.0.
  • Ventilation hole design provides excellent ventilation airflow for cooling.
  • Integrated voltage regulator delivering up to 3A for the 3.3V power rail, compliant with M.2 (NGFF) standard.

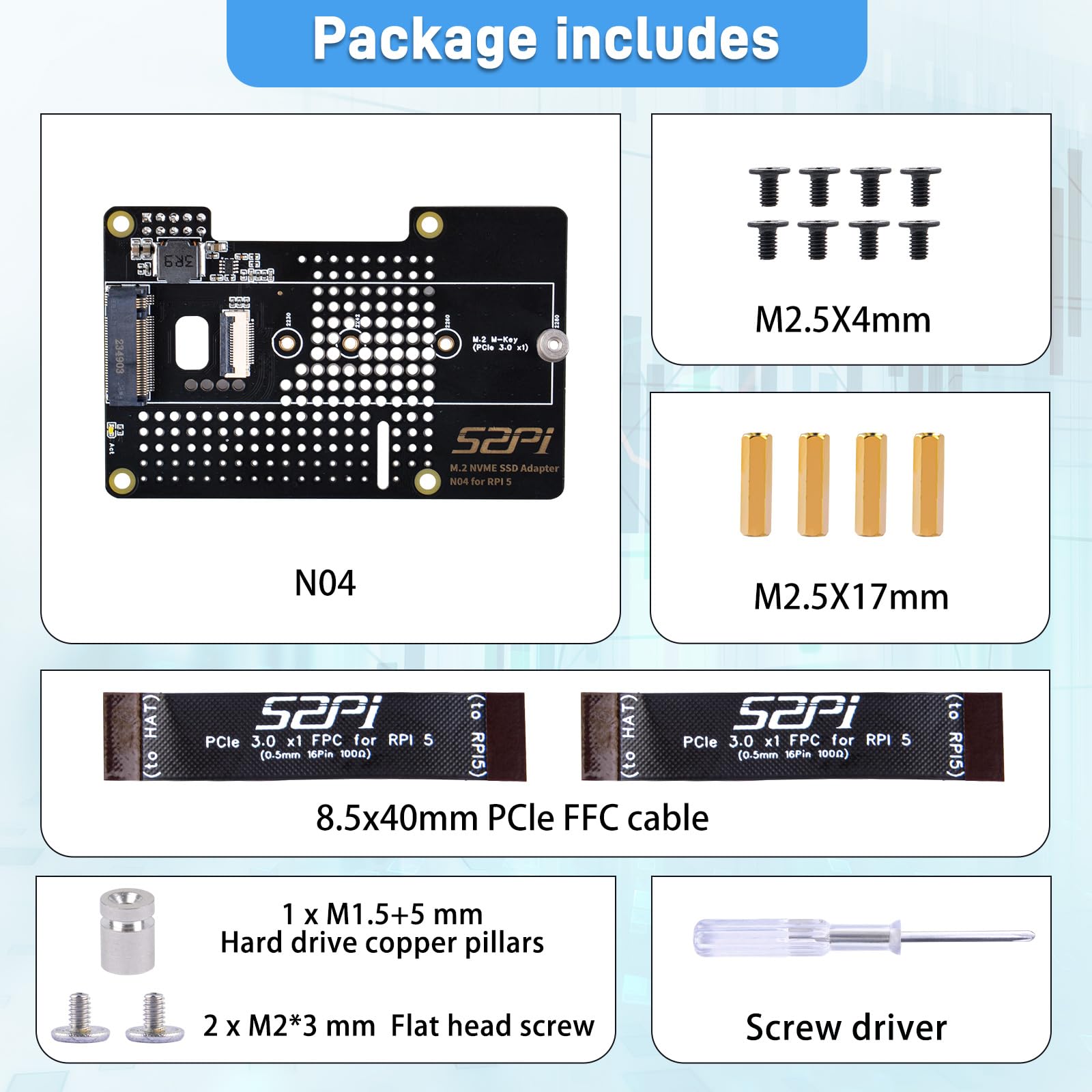

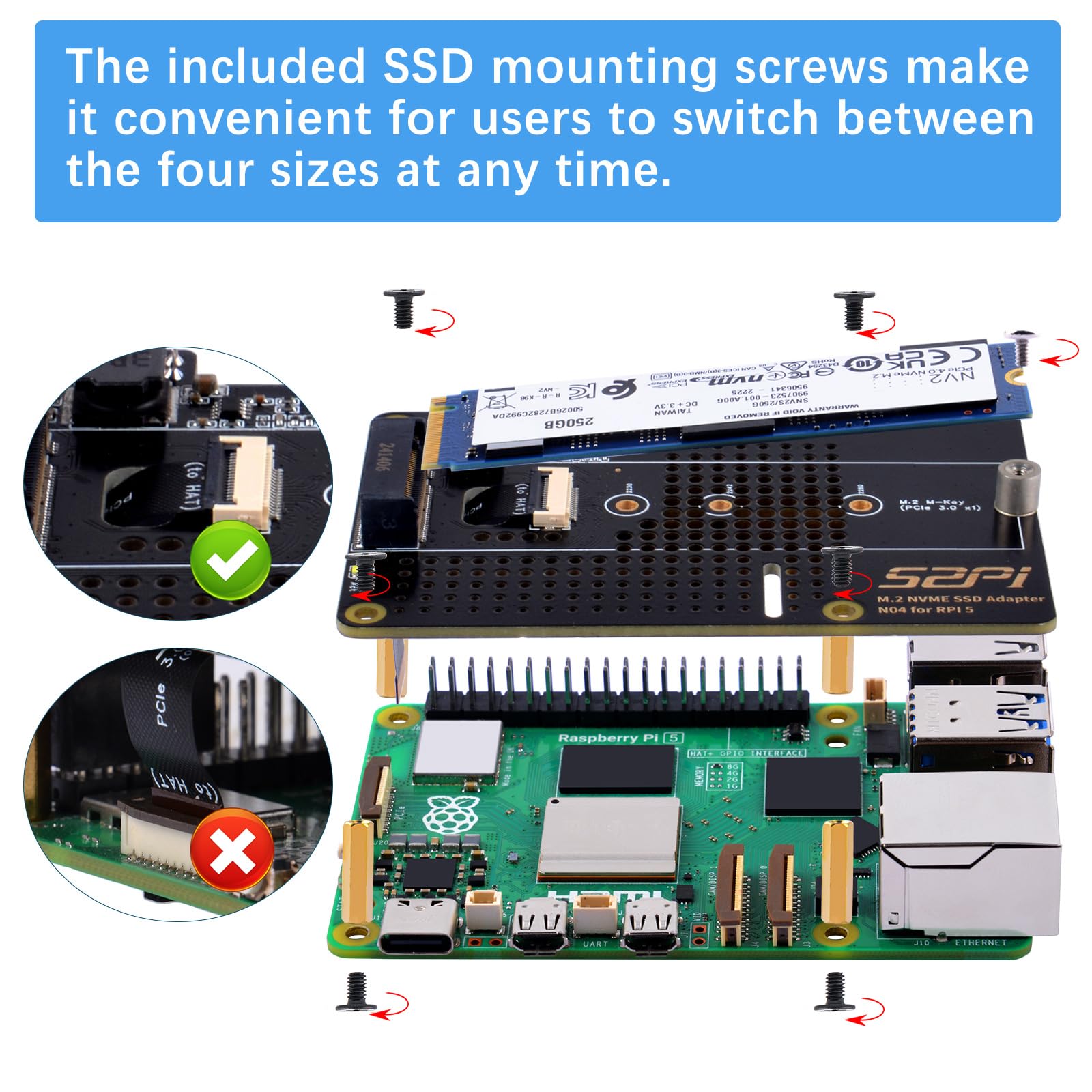

  • Comes with a FPC PCIe ribbon, M2 and M2.5 screws, spacers, and extra custom CNC SSD mount screw.
Categories: , Brand:

Description

Product Details
raspberry pi 5 nvme
raspberry pi pcie
raspberry pi 5 m.2
raspberry pi 5 pice

How to enable PCIe on Raspberry Pi 5?



  • Modify /boot/firmware/config.txt and adding following parameters:



dtparam=pciex1

And the connection is certified for Gen 2.0 speed (5 GT/sec), but you can force it to Gen 3.0 (10 GT/sec) if you add the following line after:

dtparam=pciex1_gen=3

You can run devices at PCIe Gen 3.0 speeds if you test and they run stable.



  • Enable auto detection PCIe and booting from NVME.



sudo rpi-eeprom-config –edit

Adding following parts:

PCIE_PROBE=1

BOOT_ORDER=0xf416

The 6 means to enable booting from nvme. Reboot Raspberry Pi 5 and try to use `lsblk` or `lspci -vvv` to get more details of the PCIe device.

Item model number ‎N04-New
Operating System ‎Linux
Item Weight ‎2.11 ounces
Package Dimensions ‎4.69 x 3.19 x 1.65 inches
Manufacturer ‎GeeekPi
ASIN ‎B0CRK4YB4C
