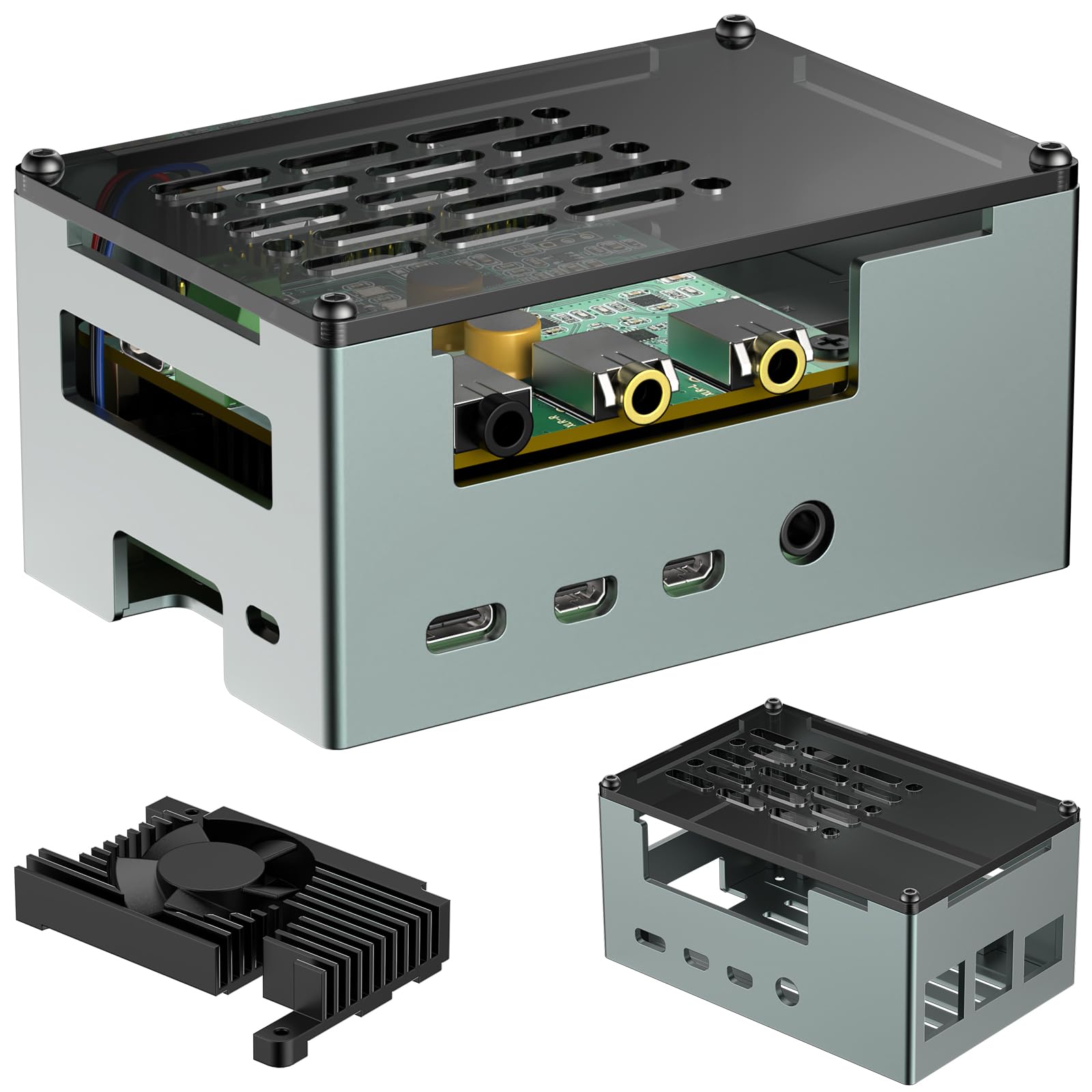

Aluminum Alloy Case for Raspberry Pi 4 - Compatible with DAC/DAC PRO/AMP/AMP PRO/RS485&CAN HAT, 3510 PWM Fan & Passive Heatsink Cooling for Expanded Boards

Aluminum Alloy Case for Raspberry Pi 4 - Compatible with DAC/DAC PRO/AMP/AMP PRO/RS485&CAN HAT, 3510 PWM Fan & Passive Heatsink Cooling for Expanded Boards - Image 2

Aluminum Alloy Case for Raspberry Pi 4 - Compatible with DAC/DAC PRO/AMP/AMP PRO/RS485&CAN HAT, 3510 PWM Fan & Passive Heatsink Cooling for Expanded Boards - Image 3

Aluminum Alloy Case for Raspberry Pi 4 - Compatible with DAC/DAC PRO/AMP/AMP PRO/RS485&CAN HAT, 3510 PWM Fan & Passive Heatsink Cooling for Expanded Boards - Image 4

Aluminum Alloy Case for Raspberry Pi 4 - Compatible with DAC/DAC PRO/AMP/AMP PRO/RS485&CAN HAT, 3510 PWM Fan & Passive Heatsink Cooling for Expanded Boards - Image 5

Aluminum Alloy Case for Raspberry Pi 4 - Compatible with DAC/DAC PRO/AMP/AMP PRO/RS485&CAN HAT, 3510 PWM Fan & Passive Heatsink Cooling for Expanded Boards - Image 6

Aluminum Alloy Case for Raspberry Pi 4 - Compatible with DAC/DAC PRO/AMP/AMP PRO/RS485&CAN HAT, 3510 PWM Fan & Passive Heatsink Cooling for Expanded Boards - Image 7

Aluminum Alloy Case for Raspberry Pi 4 – Compatible with DAC/DAC PRO/AMP/AMP PRO/RS485&CAN HAT, 3510 PWM Fan & Passive Heatsink Cooling for Expanded Boards

Original price was: $76.00.Current price is: $43.00.

About this item

Raspberry Pi 4 Case with advanced cooling: integrates a 3510 PWM ultra-quiet fan and a large passive heatsink for superior heat dissipation, ensuring stable performance under heavy computational loads or continuous operation.

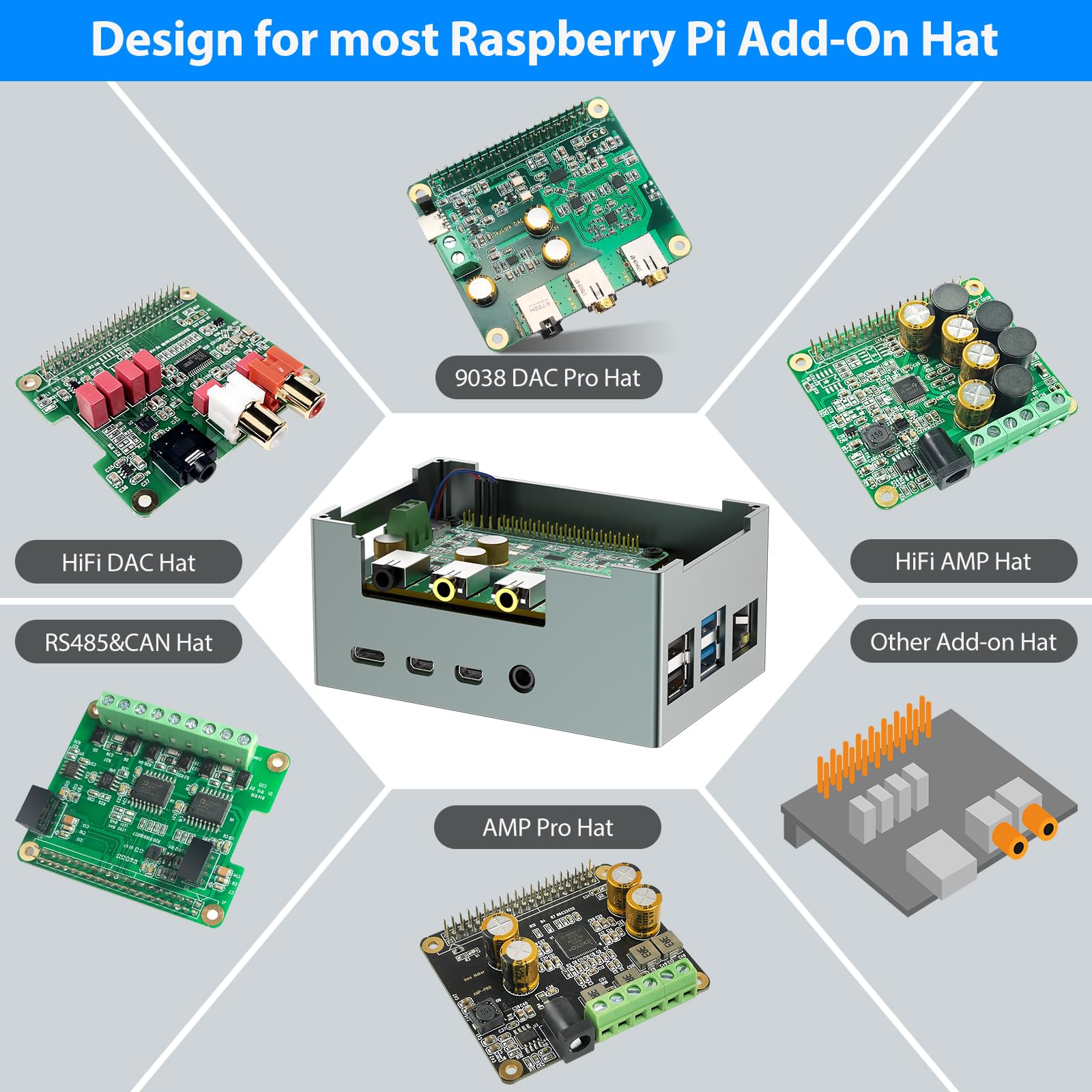

Raspberry Pi 4 HAT Compatibility: expertly designed to fit InnoMaker’s DAC, DAC PRO, AMP, AMP PRO, and RS485&CAN HATs, with ample space for most other add-on boards and expansion cards.
Smart automatic fan control for the Raspberry Pi 4 dynamically adjusts speed based on real-time CPU temperature in Raspbian; other OSes may require manual setup for custom speed profiles.

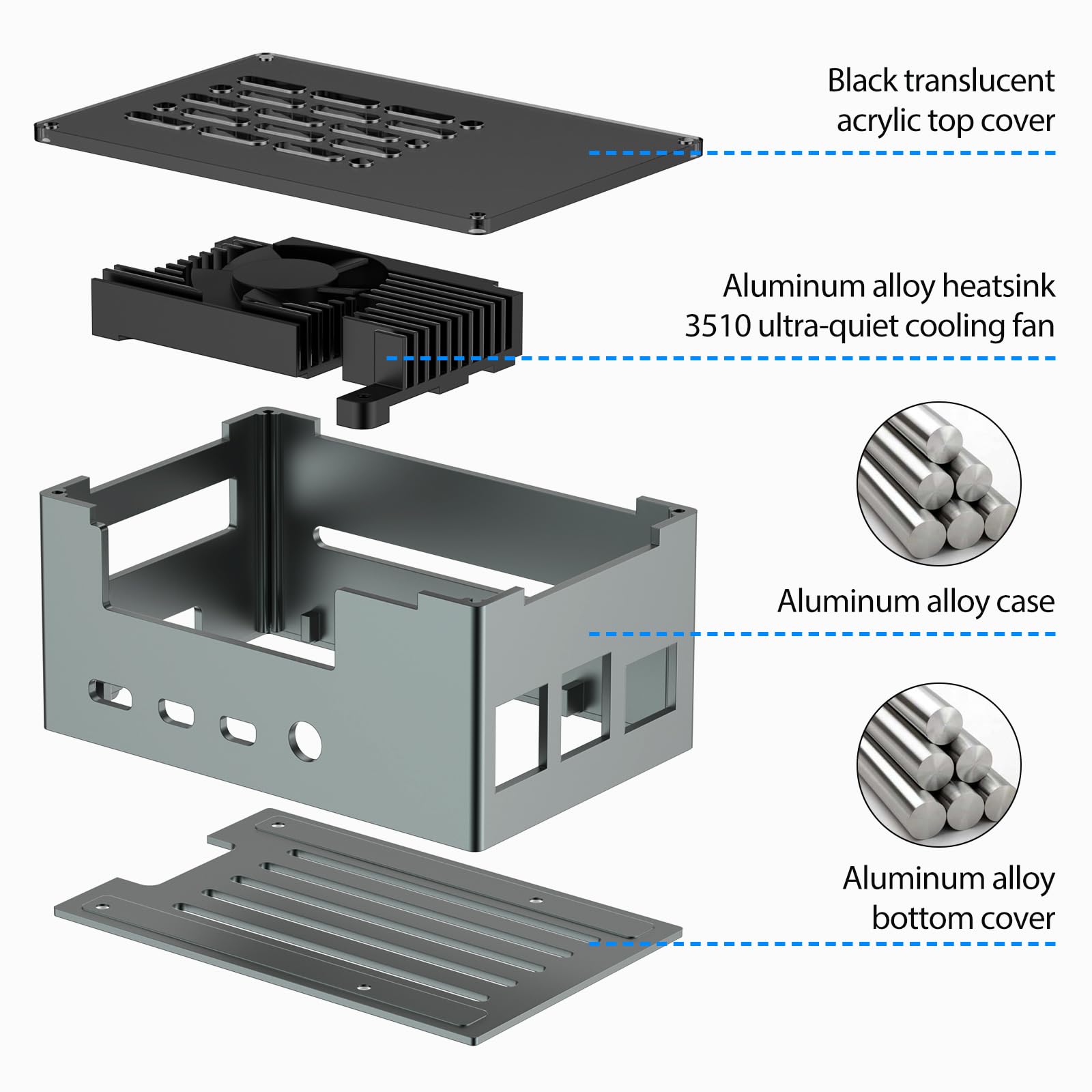

Durable protective case crafted from lightweight aluminum alloy, featuring optimized ventilation and a secure mounting design for effective cooling and reliable board protection.
Complete technical resources including fan control code and wiring guides are available on our GitHub repository, providing essential support for developers and technical users.

Category: Computer Accessories Brand: innomaker

Description
Reviews (0)

Description

Product Details

Brand	innomaker
Motherboard Compatability	raspberry pi 4
Case Type	Raspberry Pi
Recommended Uses For Product	Business
Color	Black
Material	Aluminum
Power Supply Mounting Type	Bottom Mount
Cooling Method	Air
Model Name	3510
Fan Size	120 Millimeters

Aluminum Case for Raspberry Pi 4 with 3510 PWM Fan Passive Heatsink

HOW TO INSTALL?

Raspberry Pi 4 Aluminum Case with 3510 PWM Fan Passive Heatsink Aluminum Alloy Case

STEP 1:

Install the thermal pads to raspberry pi 4.

Raspberry Pi 4 Aluminum Case with 3510 PWM Fan Passive Heatsink Aluminum Alloy Case

STEP 2:

Install the heatsink to raspberry pi 4 with copper column screws.

Raspberry Pi 4 Aluminum Case with 3510 PWM Fan Passive Heatsink Aluminum Alloy Case

STEP 3:

Install InnoMaker audio hat to raspberry pi 4 with flat-head cross screws.

Raspberry Pi 4 Aluminum Case with 3510 PWM Fan Passive Heatsink Aluminum Alloy Case

STEP 4:

Put the item into aluminum alloy shell and install bottom with conical screws.

Raspberry Pi 4 Aluminum Case with 3510 PWM Fan Passive Heatsink Aluminum Alloy Case

STEP 5:

Install acrylic top cover with hexagon socket screws.

Raspberry Pi 4 Aluminum Case with 3510 PWM Fan Passive Heatsink Aluminum Alloy Case

STEP 6:

Install buffer strips to the bottom.

Series	‎3510
Item Weight	‎6.4 ounces
Package Dimensions	‎4.41 x 2.87 x 2.2 inches
Color	‎Black
Manufacturer	‎innomaker
ASIN	‎B0C9HZXFMZ
